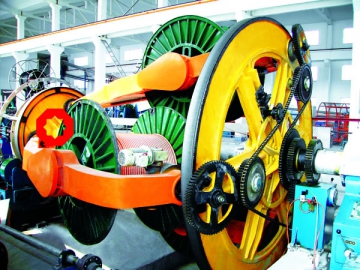

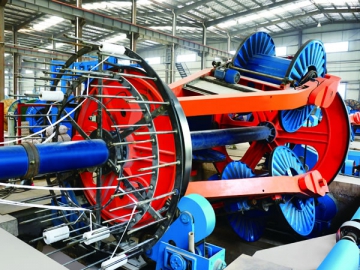

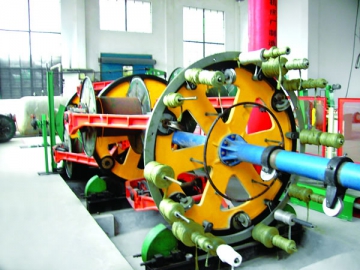

CLY Cradle Type Cabling Machine
Application
The planetary stranding cable making machine is used for making telephone cables, control cables, mining cables, or low and medium low voltage power cables.
| Bobbin Size (mm) | Max. Rotation Speed (rpm) | O.D. of Cable Core (mm) | Loading Capacity (kg) | |||
| 6B | 12B | 18B | ||||
| Ø400 | 150 | 131 | 115 | Ø1.0~Ø2.5 | 100 | |
| Ø500 | 123 | 109 | 96 | Ø1.5~Ø6.0 | 200 | |
| Ø630 | 100 | 87 | 77 | Ø2.0~Ø10.0 | 300 | |
| Bobbin Size (mm) | Max. Rotation Speed (rpm) | O.D. of Cable Core (mm) | Loading Capacity (kg) | |||
| 3B | 6B | (1 3)B | (1 1 3)B | |||
| Ø1000 | 40 | 40 | Ø5.0~Ø20.0 | 2000 | ||
| Ø1250 | 32 | 32 | 32 | 32 | Ø6.0~Ø25.0 | 3000 |
| Ø1600 | 21 | 21 | 21 | 21 | Ø10.0~Ø35.0 | 4000 |
