20211 Straight Female Metric Face Seal Fittings
Application: for use with hydraulic braided hoses
Materials:- Stainless steel straight female metric face seal fittings
- Carbon steel straight female metric face seal fittings

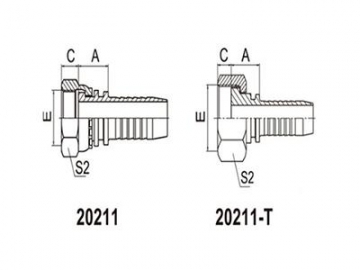

| Part No. | Thread | Hose Bore | Dimensions | ||||
| E | DN | DASH | A | C | S2 | ||
| 20211-14-04 | M14×1.5 | 6 | 04 | 15.5 | 8.5 | 19 | |
| 20211-16-05 | M16×1.5 | 8 | 05 | 16.5 | 8 | 22 | |
| 20211-18-06 | M18×1.5 | 10 | 06 | 17.5 | 8 | 24 | |
| 20211-20-06T | M20×1.5 | 10 | 06 | 16 | 10 | 24 | |
| 20211-22-08 | M22×1.5 | 12 | 08 | 18.5 | 10 | 27 | |
| 20211-24-08T | M24×1.5 | 12 | 08 | 16.5 | 11 | 30 | |
| 20211-27-10T | M27×1.5 | 16 | 10 | 19.5 | 10 | 32 | |
| 20211-30-12 | M30×1.5 | 20 | 12 | 21.5 | 11 | 36 | |
| 20211-33-14 | M33×2 | 22 | 14 | 21.5 | 13 | 41 | |
| 20211-36-14T | M36×2 | 22 | 14 | 20 | 13 | 41 | |
| 20211-39-16T | M39×2 | 25 | 16 | 23.5 | 13 | 46 | |
| 20211-42-20 | M42×2 | 32 | 20 | 26 | 15 | 50 | |
| 20211-45-20T | M45×2 | 32 | 20 | 25 | 15 | 55 | |
| 20211-52-24T | M52×2 | 40 | 24 | 25 | 17 | 60 | |
| 20211-60-28T | M60×2 | 45 | 28 | 26 | 20 | 70 | |
| 20211-64-32T | M64×2 | 50 | 32 | 26 | 23 | 75 | |
