10311 Straight Male Metric O-Ring Face Seal (ORFS) Fittings
Application: for use with hydraulic braided hoses
Materials:- Stainless steel straight male metric O-ring face seal(ORFS) fittings
- Carbon steel straight male metric O-ring face seal(ORFS) fittings

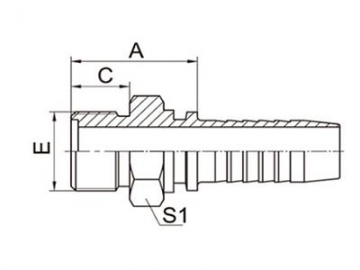

| Part No. | Thread | Hose Bore | Dimensions | ||||
| E | DN | DASH | A | C | S1 | ||
| 10311-14-04 | M14×1.5 | 6 | 04 | 23.5 | 11 | 17 | |
| 10311-16-05 | M16×1.5 | 8 | 05 | 23.5 | 11 | 17 | |
| 10311-18-06 | M18×1.5 | 10 | 06 | 23.5 | 11 | 19 | |
| 10311-22-08 | M22×1.5 | 12 | 08 | 26.5 | 12 | 22 | |
| 10311-27-10 | M27×1.5 | 16 | 10 | 31.5 | 13 | 27 | |
| 10311-30-12 | M30×1.5 | 20 | 12 | 33.5 | 14 | 32 | |
| 10311-36-14 | M36×2 | 22 | 14 | 35.5 | 16 | 38 | |
| 10311-39-16 | M39×2 | 25 | 16 | 39 | 16 | 41 | |
| 10311-45-20 | M45×2 | 32 | 20 | 44.5 | 20 | 46 | |
| 10311-52-24 | M52×2 | 40 | 24 | 47.5 | 22 | 55 | |
| 10311-64-32 | M64×2 | 50 | 32 | 52.5 | 27 | 65 | |
