20111 Metric Female Multi Seal Fittings
Application: for use with hydraulic braided hoses
Materials:- Stainless steel metric female multi seal fittings
- Carbon steel metric female multi seal fittings

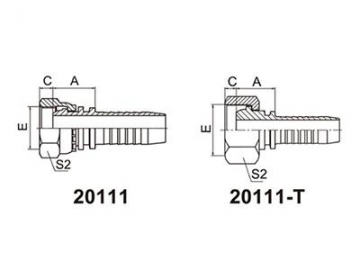

| Part No. | Thread | Hose Bore | Dimensions | ||||
| E | DN | DASH | A | C | S2 | ||
| 20111-12-04 | M12×1.5 | 6 | 04 | 18.5 | 4 | 17 | |
| 20111-14-04 | M14×1.5 | 6 | 04 | 19.5 | 4.5 | 19 | |
| 20111-16-05 | M16×1.5 | 8 | 05 | 20 | 4.5 | 22 | |
| 20111-18-06 | M18×1.5 | 10 | 06 | 21.5 | 4 | 24 | |
| 20111-20-06T | M20×1.5 | 10 | 06 | 20.5 | 5.5 | 24 | |
| 20111-22-08 | M22×1.5 | 12 | 08 | 23.5 | 5 | 27 | |
| 20111-24-08T | M24×1.5 | 12 | 08 | 22 | 5.5 | 30 | |
| 20111-27-10T | M27×1.5 | 16 | 10 | 23.5 | 7 | 32 | |
| 20111-30-12 | M30×2 | 20 | 12 | 26.5 | 7 | 36 | |
| 20111-36-14T | M36×2 | 22 | 14 | 26 | 7 | 41 | |
| 20111-39-16T | M39×2 | 25 | 16 | 29.5 | 7 | 46 | |
| 20111-42-16T | M42×2 | 25 | 16 | 30 | 8.5 | 50 | |
| 20111-45-20T | M45×2 | 32 | 20 | 31.5 | 8.5 | 55 | |
| 20111-52-24T | M52×2 | 40 | 24 | 33 | 9 | 60 | |
| 20111-64-32T | M64×2 | 50 | 32 | 35 | 14 | 75 | |
