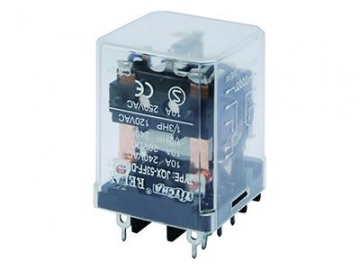

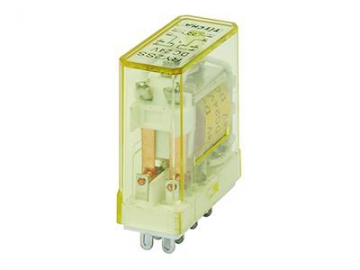

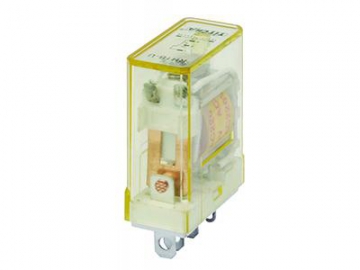

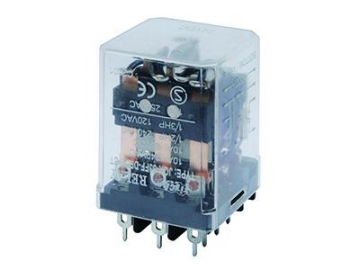

JQX-53FF/RH1B/RY2SS Series General Purpose Relay

JQX-53FF/RH1B/RY2SS Series General Purpose Relay
JQX-53FF/RH1B/RY2SS Series General Purpose Relay
JQX-53FF/RH1B/RY2SS Series General Purpose Relay
JQX-53FF/RH1B/RY2SS Series General Purpose Relay
JQX-53FF/RH1B/RY2SS Series General Purpose Relay
JQX-53FF/RH1B/RY2SS Series General Purpose Relay
Features
  • Switching current of the contact reaches up to 10A
  • Electrical life is at least 100,000 operations
  • Two and three sets of Form C contacts
  • Optional sockets
  • Built-in LED, test button
Contact parameters
Contact ratings 1Z 2Z 3Z
RH1B-U RY2SS-U JQX-52FF-2Z JQX-52FF-3Z
Contact resistance 50mΩ (1A 6VDC) 50mΩ (1A 6VDC) 50mΩ (1A 6VDC)
Contact capacity 10A/30VDC 250VAC 3A/30VDC 250VAC 10A/30VDC 250VAC 10A/30VDC 250VAC
Parameters
Insulation resistance 500MΩ (500VDC)
Dielectric strength BCC≥1500VAC 1min
BOC≥1000VAC 1min
COC≥1500VAC 1min
Operating time 25ms/15ms
Specifications
Model Coil Electrical life Mechanical life Operating temperature Weight Mounting methods
Rated voltage Rated power
JQX-53FF-2Z DC 6 to 220V AC 6 to 380V DC≤2W
AC≤3.5VA
105 OPS 107 OPS 40℃~70℃ ≤72g printed-circuit board, flange, outlet
JQX-53FF-3Z DC 6 to 220V AC 6 to 380V DC≤2W
AC≤3.5VA
105 OPS 107 OPS 40℃~70℃ ≤76g
RH1B-U DC 6 to 220V AC 6 to 380V DC≤0.9W
AC≤1.2VA
105 OPS 107 OPS 40℃~70℃ ≤22g
RY2SS-U DC 6 to 220V AC 6 to 380V DC≤1.5W
AC≤2.5VA
105 OPS 107 OPS 40℃~70℃ ≤22g
Outline dimension, bottom View
