Wall Mounted LCD Display

: http://willfar-power.com/6-2-wall-mounted-solar-light.html

Description

The wall mounted LCD display uses SECC high quality material in the machine frame. The display carries out information distribution, interactive entertainment, advertising and more.
This wall mounted LCD screen has an IP65 protection grade, allowing it to effectively perform even in harsh weather environments.
The screen brightness reaches up to 2,000 nits, meaning images are still clearly displayed even in brightly lit environments.
It is equipped with a number of technology ports, allowing users to use different methods for advertising display.

Application
The wall mounted LCD display can be used in any areas with a heavy foot traffic pattern for advertising and information display, such as hotel lobbies, movie theaters, cafes and more.

Parameters

Wall Mounted LCD Display
Type	OD32	OD43	OD55	OD65
Application environment	Outdoor
Water proof grade	IP65
LCD display
Dimension	32 inch	43 inch	55 inch	65 inch
Display area	697.6*392.2	930.2*523.2	1209.6*680.4	1435.4*810.5
Display scale	0.672916667	0.672916667	0.672916667	0.672916667
Brightness	2000cd/m²
Resolution rate	1920*1080	1920*1080 or 3840X2160	1920*1080 or 3840X2160	1920*1080 or 3840X2160
Contrast	208.3340278
Viewing angle	178/178
Response time	6ms
Service life	50000H
Machine frame
Machine material	SECC
Machine color	Black (outdoor type)
Frame dimension	Width: 49mm; height: 79mm	Width: 57mm; height: 116mm	Width: 99mm; height: 137mm	Width: 99mm; height: 137mm
Panel frame material	SECC
Bare machine dimension	795522100mm	1046698.5179mm	1407.6918.6179.6mm	16321043.8179mm
Bare machine weight	22kg	32kg	50kg	62kg
Installation method	Wall mounted
Main hardware index
Operation system	Android5.1.1
CPU	RK3288
GPU	ARM Mali-T764
Internal storage	2G
Flash	8G/16G
3G	Support
Basic port
Port	HDMI IN, HDMI OUT, RJ45, SD, EARPHONE, USB*2
Speaker	2*8W
Function
Video display	WMV MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv
Audio display	MP3, WMV
Picture format	JPG, JPEG, BMP, PNG, GIF
Text format	TXT
OSD language	Chinese, English, French, Spanish
Electrical specification
Power supply	AC input
Power input	AC 110V~220V
Working environment
Working temperature	-20~55℃
Working humidity	≤80%
Storing temperature	-20~60℃
Other
Accessory	Power cord
Packing dimension	925185652mm	1176270828mm	15372701048mm	17622701173mm

Features of the wall mounted LCD display

The display has an IP65 grade protection, allowing it to perform well even in dusty or wet environments.
High brightness and HD: the brightness reaches 1500nits, the resolution is 1920 x 1080, and the contrast rate is 5000:1.
Wide viewing angle: 178°/178°.
This LCD commercial display features a long service life of more than 50,000h.
The response time is as short as 6ms.
Port: HDMI IN, HDMI OUT, RJ45, SD, EARPHONE, USB*2.
It has a large internal storage of 2+8G/2+16G.
This wall mounted LCD screen supports text, picture and video broadcasting in different formats.
This screen is equipped with an automatic fan cooling system.
The display brightness can be automatically adjusted, so that images are seen clearly even in environments with rapidly changing brightness levels.
Users can choose to have the display equipped with a touch screen.

Optional accessories

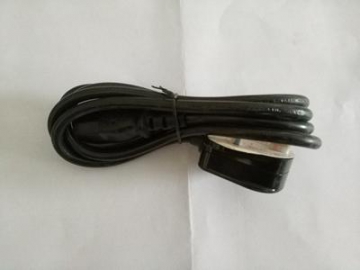

Power cord

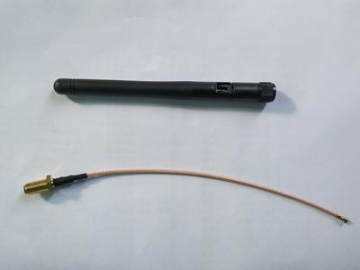

WIFI antenna

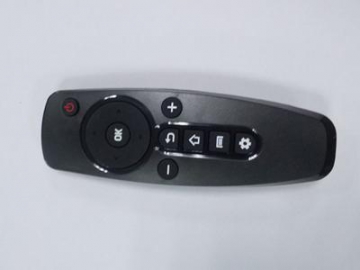

Remote control

Installation method

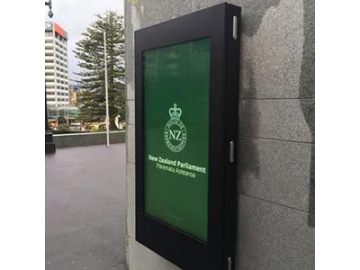

This wall mounted LCD display adopts wall mounted installation method.

According to customer requirements, the floor wall mounted LCD screen can be double faced.

This display can be equipped with a touch screen upon request, turning it into a capacitive touch screen outdoor commercial display.
