Stretched LCD Display
Description
- The stretch display is a special display developed from conventional designs.
- The stretch display is more suitable for the whole structure and environment of buildings. Compared with conventional displays, this display has different displaying proportions, 32:9 or 16:3.
- Like conventional displays, the stretch display still has the advantages of a wide viewing angle, high contrast and high resolution. Besides, there is no time lagging or ghosting phenomenon with these displays.
- The stretch display has high luminance, which will satisfy the varying requirements dependent on the location of installation.
- We can provide customized services and best solution for customers to satisfy different requirements.
Application

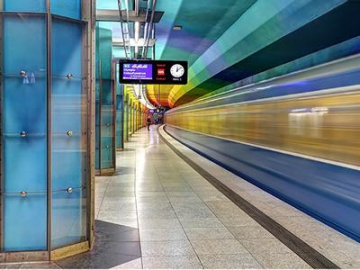

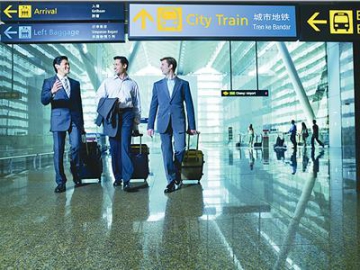

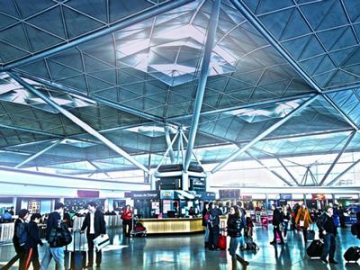

The stretch display is mainly used in train station, bus platform, subway, airport, etc.
| Stretched LCD Display | ||
| Version | BD32/X32 | BD42/X42 |
| Applied scenes | Indoor | |
| Ingress Protection | ||
| LCD panel | ||
| Size | 29 inches | 38 inches |
| Display area | 698.4*196.4mm | 930.2*260.7mm |
| Display scale | 0.011163194 | |
| Luminance | 1000nits | |
| Image resolution | 1920*540 | |
| Contrast ratio | 166.6673611 | |
| View angle | 178°/178° | |
| Response time | 7ms | |
| Service life | 50000h | |
| Frame | ||
| Material | Steel shell | |
| Color | Black | |
| Dimension of frames | top, bottom, left, right: 24 | Top and bottom: 20.7mm, left and right: 17.5mm |
| Material of frame | aluminum profile/steel | |
| Dimension of bare machine | 794.4*247.4*50.6mm | 976.6*300*52.8mm |
| Weight of bare machine | 5.8kg | 8.5kg |
| Assembling method | Wall hanging | |
| Primary hardware index | ||
| Operating system | Android 6.0 | |
| CPU | S905X A53@up to 1.5G Hz | |
| GPU | Mali-450 up to 750M Hz | |
| RAM | 1GB | |
| Flash | 8GB | |
| 3G | 802.11 b/g/n | |
| Essential connector | ||
| Input connector | USB*3, RJ45*1, HDMI*2 | |
| Network interface | RJ45, WIFI | |
| Loudspeaker | 2*5W | |
| Functions | ||
| Video | AVI, rm, rmvb, MKV, WMV, MOV, MP4, DAT, VOB, PMP, MPEG, MPG, FLV, ASF, TS, TP, 3GP, MPG | |
| Audio | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV | |
| Picture format | JPG, JPEG, BMP, PNG, GIF | |
| OSD language | Chinese, English, etc. | |
| Electrical Specifications | ||
| Power supply | AC 110-240V ,50/60Hz | |
| Working environment | ||
| Working temperature | 0℃~55℃ | |
| Working humidity | 10%~90% | |
| Storing temperature | -20℃~65℃ | |
| Other parameters | ||
| Accessories | remote control, power line, warranty card | |
| Packaging material | Carton and pearl wool | |
| Packaging dimension | 832*337*127mm | 1060*390*130mm |
- The visual angle of this product is 178°/178°, which is wide-angle and high-luminance.
- The stretch display has the advantages of a wide view angle, high contrast, and high resolution. Besides, there is no time lagging or ghosting phenomenon in this product.
- This product is equipped with a high strength PC face shield.

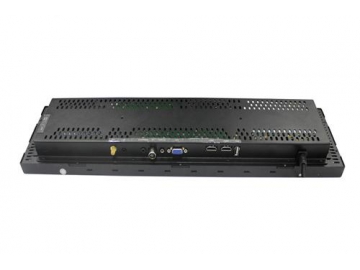

- The stretch display has connectors of USB,RJ45 and HDMI.

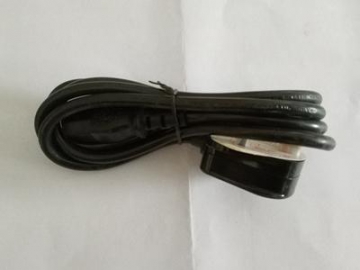

- Power line

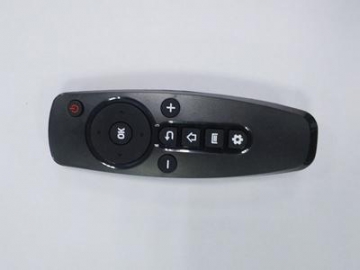

- Remote control
