Description

  • The Z1 wall mounted LCD screen is an indoor advertising display used primarily for commercial purposes. It uses plastic and tempered glass in the body, giving it a smooth, sleek appearance to fit public aesthetic standards.
  • The wall mounted LCD screen uses RK3188 Android, with a CPU that works faster and reduces failure rates.

Application
The commercial LED display can be used in just about any public area, from hotels and shopping malls to elevators and office buildings.

Parameters
Z1 Wall Mounted LCD Screen
Version ST16Z1 ST22Z1 ST32Z1
Applied scenes Indoor
LCD panel
Size 15.6" 21.5" 32"
Display scale 0.672916667
Luminance 300nits
Image resolution 1366*768 1920*1080 1920*1080
Contrast ratio 125.0006944
View angle H: 178°/V: 178°
Color expressivity 16.7M
Backlight type ELED/DLED
Response time 6.5ms
Frame
Material Plastic
Color Black
Dimension of frames top, bottom, left, right: 32mm
Dimension of bare machine 403*252*33mm 539*332*39mm 763*457*47mm
Weight of bare machine 2KG 4KG 8.4KG
Pitch-row of wall mounted 75mm*75mm 100mm*100mm 100mm*100mm/75mm*75mm
Type of touchpad Capacitive touch
Assembling method Wall mounted, cradle
Primary hardware index
Operating system Android 5.0
CPU RK3188 Cortex-A9
GPU Mail-400 @ 533MHz
RAM 1G/2G DDR
Flash 8GB FLASH
WIFI WIFI802.11b/g/n
Essential connector
Connectors USB*3, RJ45*1, SD*1, SD*1
Loudspeaker 2*3W
Functions
Video AVI, rm, rmvb, MKV, WMV, MOV, MP4, DAT, VOB, PMP, MPEG, MPG, FLV, ASF, TS, TP, 3GP, MPG
Audio MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
Picture format JPG, JPEG, BMP, PNG, GIF
Text format TXT
OSD language Chinese, English, etc.
Electrical Specifications
Power supply mode
Power supply AC 110-240V, 50/60 HZ; DC 12V
Power dissipation
Length of power line 1.5m
Working environment
Working temperature -20℃~45℃
Working humidity 10%~90%
Storing temperature -20℃~65℃
Other parameters
Accessories Warranty card*1, wall mounted support(optional), remote control*1, battery, power line
Packaging Carton and pearl wool
Packaging dimension 478*135*327mm 614*135*412mm 858*132*557mm
rough weight 2.8kg 5kg 10kg
Warranty period One year
Characteristics of Z1 wall mounted indoor commercial led display
  • This LED display is protected by tempered glass, making it safer to use in public.
  • It is equipped with Android 5.1 and the latest industrial CPU RK3188.
  • This product has 2G RAM and 8G ROM.
  • This wall mounted LCD screen supports various file formations for pictures, video and audio, so that users can smoothly play their videos and music.
Accessories

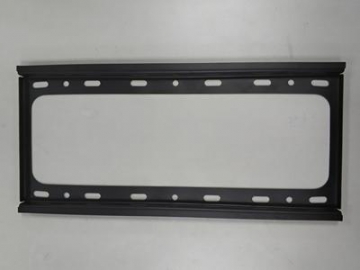

  • Wall mounted support

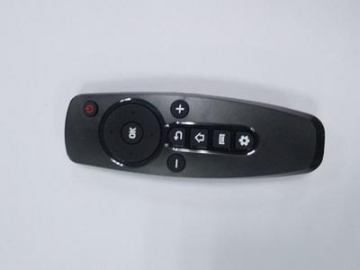

  • Remote control

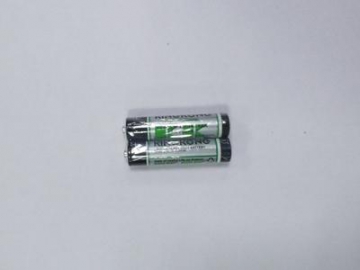

  • Battery

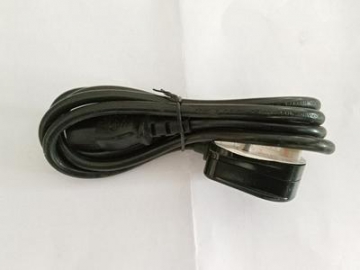

  • Power line
