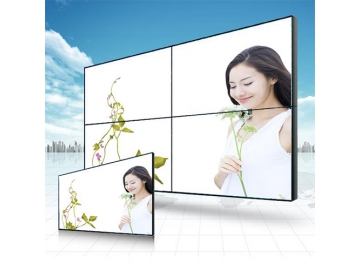

LCD Video Wall
Description
- The video wall features a special integrated control system in order to offer the user perfect HD photos. The system achieves multi-screen, signal switching and centralized network control functions.
- The video wall uses signal synchronization technology during arbitrary switching and nondestructive remote transmission. The video wall can also be intelligently controlled using an advanced LCD splicing display system in order to provide an outstanding visual display.
Application

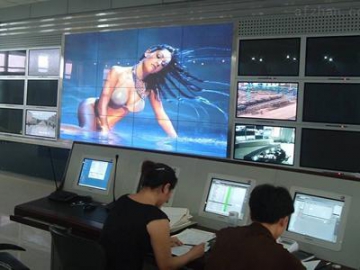

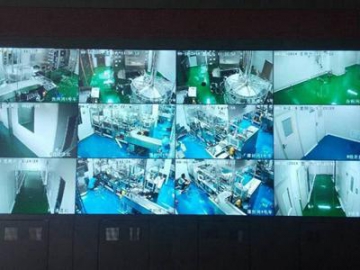

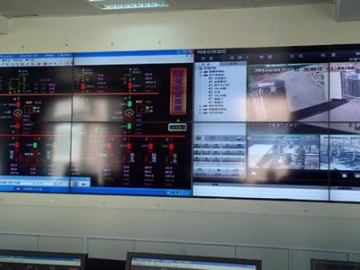

The large LCD module digital screen can be used in many places, such as entertainment venues, schools, shopping malls, real estate markets, and more.
| Sizes | Brightness | Bezel | Dimensions(mm) |
| 46" | 450cd/m | 5.3mm | 1024*578*139.8 |
| 46" | 500cd/m | 3.9mm | 1024*578*139.8 |
| 49" | 500cd/m | 3.9mm | 1076*606.3*63.7 |
| 55" | 450cd/m | 3.9mm | 1213.5*684*98.5 |
| 46" | 700cd/m | 3.9mm | 1022*576.6*139.8 |
| 55" | 700cd/m | 3.9mm | 1213.5*684*98.5 |
| 55" | 500cd/m | 1.7mm | 1213.4*684*98.5 |
| 46" | 700cd/m | 1.7mm | 1024*578*139.8 |
| 55" | 700cd/m | 1.7mm | 1213.4*684*98.5 |
| LCD Panel | Panel brand | Kontech/ Samsung |
| Color temperature | 10000K | |
| Aspect ratio | 16:09 | |
| Contrast(Typical) | 3500:01:00 | |
| Resolution (H x V) | 1920 X 1080 | |
| Display colors | 16.7M(8bit) | |
| Response time(typical) | 8ms | |
| View angle | 178°/178° | |
| Operating life time | ≥50,000hours | |
| Interface | HDMI | 1x HDMI interface input, support 1080P |
| DVI | 1x DVI digital signal input, support 1080P | |
| VGA | 1x VGA analog signal input, support 1080P | |
| CVBS IN | 2x video input, support NTSC, PAL & SECAM. | |
| USB | For software updating, HD base map function | |
| RS232 | A serial port ring out controls A, adopt 568B standard | |
| RS232 | A serial port ring out controls computer | |
| Power Supply | AC Power range | 100V-240V |
| Working temperature | 0~50℃ | |
| Working humidity | 10~90% RH | |
| OSD Language | YES: Chinese, English, etc. | |
| Warranty | YES, one-year warranty. During this period, any defects that occur on behalf of the supplier, Kontech will replace the necessary parts free of charge. | |
- Luminance: 500-700nits
- Samsung and LG screen are alternative.
- Ultra-narrow bezel: 1.7mm/1.8mm/3.5mm/3.9mm/5.5mm
- Automatic temperature control system is steady and reliable.
- Native resolution up to 1920×1080, viewing angle up to 178°
- Built-in 3D noise reduction technology
- Embedded 3D color separation unit.
- High reliability, support non-stop work for 24 hours, suitable to use as monitor
- Flicker free, less radiation, less heat release, no lead, mercury and other harmful substances
- Particular block design supports multiple art combination. Maximum support (15×15)
- Low power consumption, standby <3W
- Integrated multi-channel video signal source, support HDMI, DVI, VGA, CVBS and USB video playback

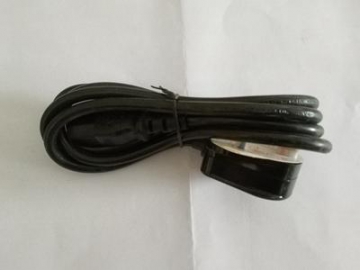

- Power line
- Instruction book

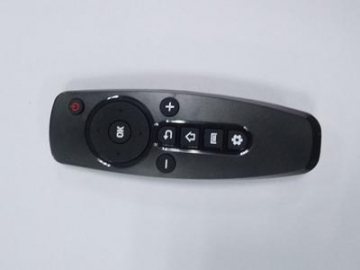

- Remote control
Assembling method
Wall hanging
