QFM460C 600C Clamshell box making machine

QFM460C 600C Clamshell box making machine
QFM460C 600C Clamshell box making machine
QFM460C 600C Clamshell box making machine
QFM460C 600C Clamshell box making machine
QFM460C 600C Clamshell box making machine
QFM460C 600C Clamshell box making machine
QFM460C 600C Clamshell box making machine
QFM460C 600C Clamshell box making machine
: http://witymachinery.com/2-2-sealing-bag3.html

QFM 460C Clamshell box making machine can not only realize mass production, but also ensure stable quality under high speed operation. This machine can be used to produce various handcover book case, workbook, file folder, game paper, account book, calendar, diary, album, top-grade packaging box, etc.

Parameters
Model QFM 460C QFM 600C
Sheet length 190-830mm 230-1030mm
Sheet width 100-460mm 100-600mm
Sheet thickness 80~200g/m2 80~200g/m2
Cardboard thickness 1-3mm 1-3mm
Min. width of spine 8mm 8mm
Speed 0-30pcs/min 0-30pcs/min
Power 12kw 13kw
Machine weight 3000kg 4000kg
Machine dimension L7000×W2100×H1260mm L8900×W2250×H1450mm
Workflow
Drawing

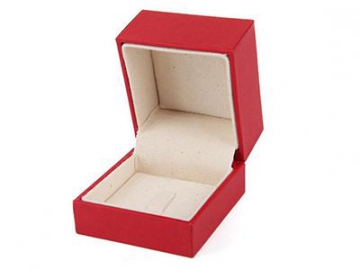

Samples
Related products

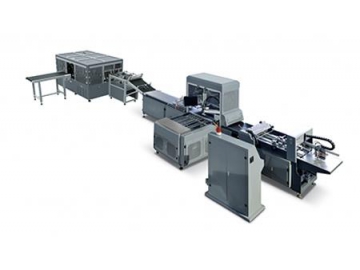

Automatic Wine Box Making Machine
Automatic Wine Box Making Machine

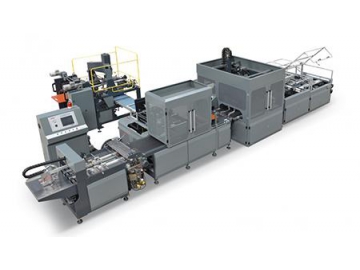

Cigar style box making machine
Cigar style box making machine

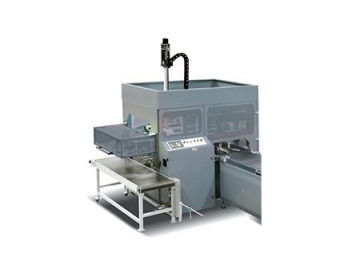

B460A Set Up Box making machine
B460A Set Up Box making machine

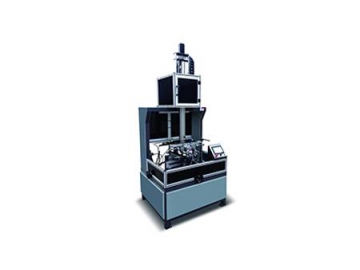

B460 Set Up Box making machine
