Cigar style box making machine
- Comes with an automatic paper feeder of vacuum suction sheet separation, this machine is servo and pneumatically controlled.
- With air suction device and automatic leveling device at the end, the machine can protect paper from bending and avoid air bubbles.
- The intelligent touch screen ensures that the human-machine interaction is more convenient and direct.
- The Omron PLC intelligent software control system is used for automatic fault detection, which facilitates debugging and reduces the waste of raw materials.
Parameters
Case maker unit
| Sheet length | 190-1030mm |
| Sheet width | 130-600mm |
| Sheet thickness | 80~200g/m2 |
| Cardboard thickness | 1-3mm |
| Min. width of spine | 8mm |
| Speed | 0-30pcs/min |
| Power | 13kw |
| Machine weight | 4000kg |
| Machine dimension | L11000×W5000×H2800mm |
Box wrapper unit
| Box size | Max. | Min. |
| 420mm | 100mm | |
| 320mm | 50mm | |
| 150mm | 15mm | |
| Sheet thickness | 80-200g | |
| Cardboard thickness | 1.5-3mm | |
| Fold ear depth | 125mm | |
| Edge folding depth | 100mm | 20mm |
| Positioning accuracy | ± 0.3mm | ± 0.1mm |
| Production speed | ≦20 sheets/min |
Workflow
Drawing

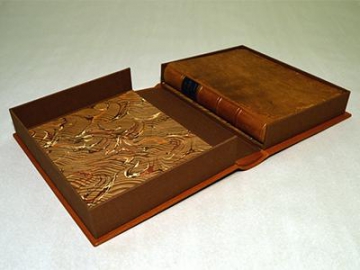

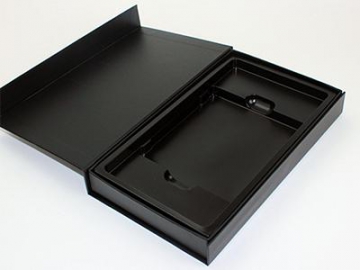

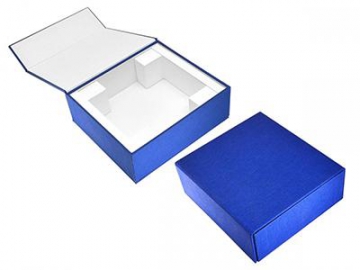

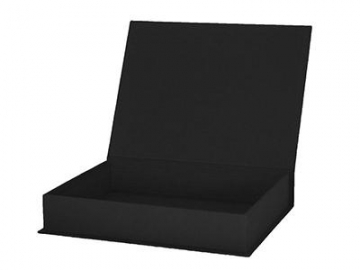

Samples
