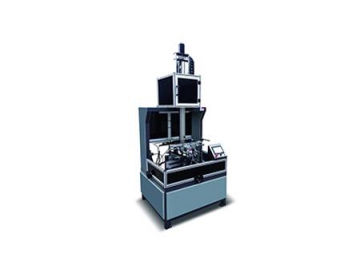

B460 Set Up Box making machine

B460 Set Up Box making machine
B460 Set Up Box making machine
B460 Set Up Box making machine
B460 Set Up Box making machine
B460 Set Up Box making machine
B460 Set Up Box making machine
: http://pack-equipment.com/1-2-1-b460-box-wrapper.html
Parameters
Parameters B460
Sheet size(A×B) Min. 100×200mm
Sheet thickness 100-200g/m2
Cardboard thickness T 1-3mm
Box size(W×L×H) Min. 50×100×15mm Max. 320×420×120mm
Edge Folding depth R min. 10mm R max. 70mm
Production speed 10-20 boxes/min
Power 10kw/380V/3phases
Heater power 2.5kw
Air supply 10L/min 0.6Mpa
Machine weight 700kg
Machine dimension L1100×W1100×H2600mm

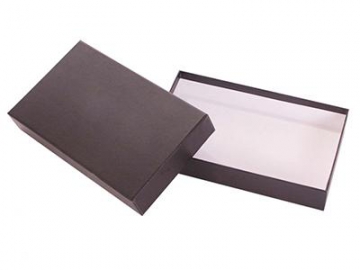

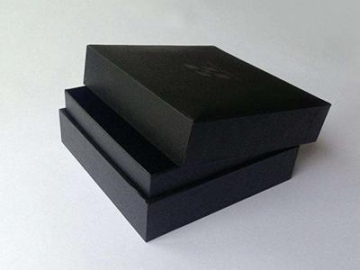

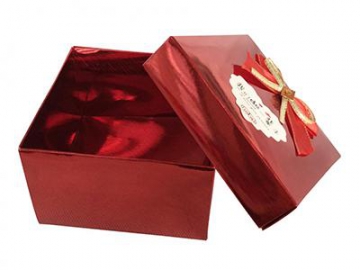

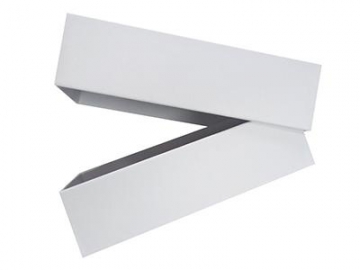

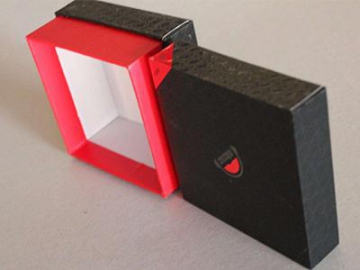

Samples
