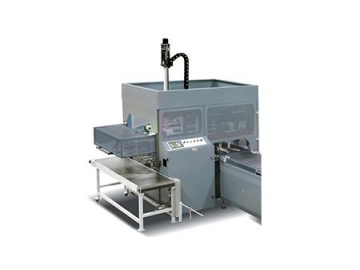

B460A Set Up Box making machine

B460A Set Up Box making machine
B460A Set Up Box making machine
B460A Set Up Box making machine
B460A Set Up Box making machine
B460A Set Up Box making machine
B460A Set Up Box making machine
: http://pack-equipment.com/1-1-7-b460a-box-wrapper.html
Parameters
Parameters B460A
Sheet size(A×B) Max. 580×800mm
Sheet thickness 100-200g/m2
Cardboard thickness T 1-3mm
Box size(W×L×H) Min. 50×100×15mm Max. 320×420×150mm
Edge folding depth R min. 15mm R max. 70mm
Production speed 10-20 boxes/min
Power 10kw/380V/3phases
Heater Power 2.5kw
Air supply 10L/min 0.6Mpa
Machine weight 700kg
Machine dimension L1100×W1100×H2600mm
Samples
Related products
B460 Set Up Box making machine
B460 Set Up Box making machine
SJ420YS Set Up Box making machine
SJ420YS Set Up Box making machine
S600 Set Up Box making machine
S600 Set Up Box making machine

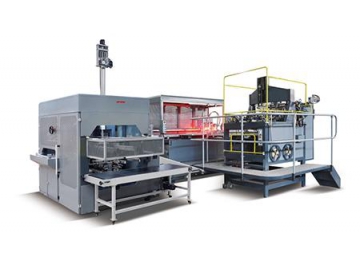

S460Y Set Up Box making machine
