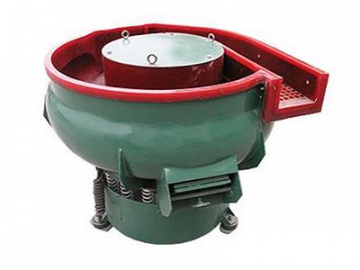

Vibratory Polishing Machine with Separator
The vibratory tumbler with cover can isolate the sound caused by vibratory, also prevent any splash of compouds or medias, creates a friendly working consition. It is an humanized and reliable design to ensure safety and health. Vibratory polishing machine with separator features high practicability and controllability, can meet the high precision requirement.
Vibratory polishing machine with separator is capable of processing small and medium workpieces in a quick step, which makes it one of the most common finishing machines.
| Model | Capacity (L) | Motor Power (kw) | Speed (m/min) | Amplitude (mm) | Lining Thickness (mm) | Weight (kgs) | Size L*W*H (mm) | |
| CL-40A | 40 | 0.55 | 1450 | 0.8-3 | 6-12 | 65 | 600*500*600 | |
| CL-60A | 60 | 0.75-1.1 | 1450 | 0.8-3 | 6-12 | 100 | 700*640*700 | |
| CL-80A | 80 | 1.1 | 1450 | 0.8-3 | 6-12 | 110 | 840*640*740 | |
| CL-95A | 95 | 1.1 | 1450 | 0.8-3 | 6-12 | 125 | 860*800*750 | |
| CL-135A | 135 | 2.2-3.0 | 1450 | 0.8-4 | 6-15 | 350 | 1150*1060*900 | |
| CL-150A | 150 | 2.2-3.0 | 1450 | 0.8-4 | 6-15 | 380 | 1150*1050*900 | |
| CL-350A | 350 | 5.5 | 1450 | 0.8-6 | 6-20 | 800 | 1450*1350*1050 | |
| CL-450A | 450 | 5.5 | 1450 | 0.8-6 | 6-20 | 1000 | 1550*1430*1050 | |
| CL-650A | 650 | 7.5 | 1450 | 0.8-8 | 6-20 | 1500 | 1900*1850*1300 |
