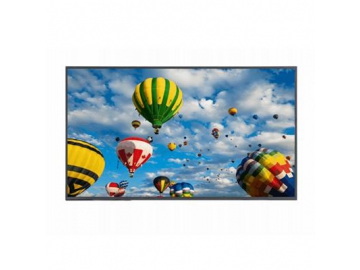

High Brightness Digital Signage
Description
- The high brightness digital signage is an advertising display used primarily for commercial purposes in both indoors and partially outdoor locations. Aluminum profiles are used for the front frame, and steel for the enclosure to make the display stronger and lighter.
- The border-width of the sign display is only about 15mm. The beautiful and fashionable appearance caters to a great public aesthetic appeal.
- The luminance reaches 800cd/m², which exceeds industrial standards. This ensures a better eye catching display, and successfully attracts customer attention within a radius of 300m.
- Our high brightness digital signage uses internationally known brightness technology in order to increase the visibility. The LED temperature is controlled under 60 ℃, which prolongs and stabilizes the service life of these digital sign displays. Resolution is 1920 x 1080 or 3840X2160, making the display images more colorful, vivid, beautiful and sharp.
Application

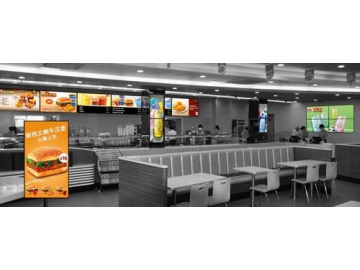

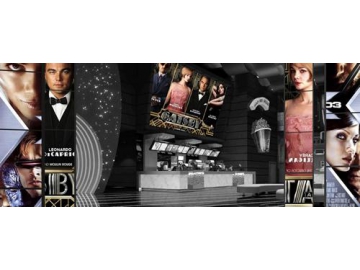

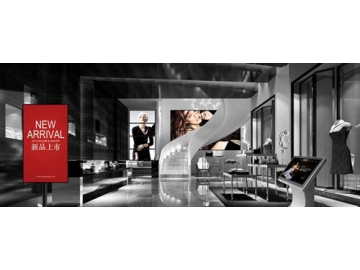

This high brightness digital signage can be used in some indoor and semi-outdoor environment like showcases and corridors and some public places such as shopping malls, cinemas and restaurants.
| high brightness digital signage | ||
| Version | SH55K2 | SH65K2 |
| Applied scenes | Indoor and semi-outdoor environment like showcases and corridors | |
| LCD panel | ||
| Size | 55 inches | 65 inches |
| Displaying color | 8 bits, 16.7M | |
| Luminance | 800nits/1000nits | |
| Image resolution | 1920*1080 or 3840X2160 | |
| Contrast ratio | 166.6673611 | |
| View angle | 178°/178° | |
| Response time | 6.5ms | |
| Service life | ≥50000hours | |
| Frame | ||
| Material | Aluminum front frame & steel enclosures | |
| Color | black/silvery | |
| Dimension of frames | 11*11*11*15mm | 10*10*10*16.4mm |
| Protecting tempered glass | No | |
| Dimension of bare machine | 1233.6*711.0*76.2mm | 1450.5*839.1*74.7mm |
| Weight of bare machine | 23.8kg | 34.6kg |
| Hole site of wall hanging | VESA Standard 400X400mm | VESA Standard 600X400mm |
| Assembling method | Wall hanging | |
| Primary hardware index | ||
| Operating system | Android 5.1 | |
| CPU | Amlogic S905X Quad Core ARM | |
| GPU | Penta-Core ARM Mali-450 Up to 750MHz+(DVFS) | |
| RAM | 2G DDR | |
| Flash | 8GB FLASH | |
| Essential connector | ||
| connectors | HDMI Input*1, VGA*1, DVI*1, PC Audio input*1, R/L Audio out*1, USB 2.0*3, RS232*2 (RJ45 IN/OUT), IR input*1(RJ45), IR output*1(RJ45), Earphone*1, Ethernet*1 | |
| Loudspeaker | 2 x 8W | |
| Functions | ||
| Video | AVI, rm, rmvb, MKV, WMV, MOV, MP4, DAT, VOB, PMP, MPEG, MPG, FLV, ASF, TS, TP, 3GP, MPG | |
| Audio | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV | |
| Picture format | JPG, JPEG, BMP, PNG, GIF | |
| Text format | TXT | |
| OSD language | Chinese, English, etc. | |
| Electrical Specifications | ||
| Power supply | AC 110-240V, 50/60 HZ | |
| Working environment | ||
| Working temperature | -20~50℃ | |
| Working humidity | 10~90% RH | |
| Other parameters | ||
| Accessories | power line*1, wall-hanging support(optional), remote control*1, separated remote receiver*1, instruction*1 | |
| Warranty period | 12 months | |
| Packaging material | Hard honeycomb cardboard box | |
| Packaging dimension | Double machines: 1330*400*840mm(honeycomb cardboard box) | Double machines: 1600*400*1020mm(honeycomb cardboard box) |
| rough weight | 52.6KG | 75KG |
- The response time of only 6.5ms is shorter than others available on the market today.
- The luminance of this high brightness digital signage reaches 800cd/m², which is higher than industrial standards. This makes images eye catching, clear and sharp.
- This equipment comes with an Android 5.1 and the latest industrial CPU S905X in the display. It features 2G RAM and 8G ROM.
- This digital signage display supports different picture, video and audio formats, allowing users to easily play various video and music files.

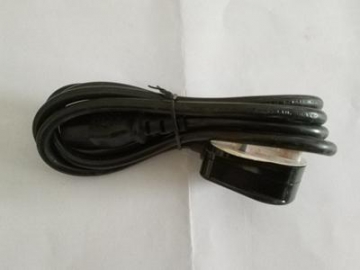

- Power line

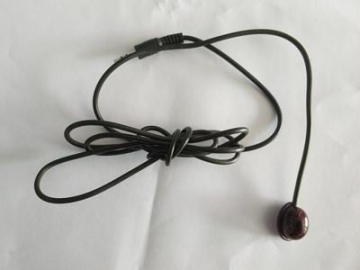

- Separated infrared receiver

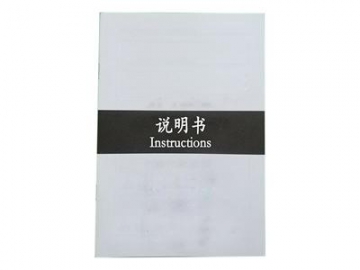

- Instruction book

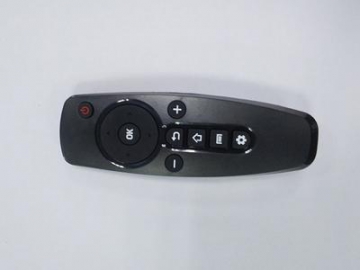

- Remote control

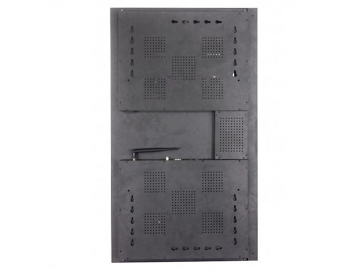

Assembly method
Wall hanging
