Freestanding LCD Digital Signage
Description
- The Kontech freestanding LCD digital signage is an LCD advertising display that is ideal for communication, interactive messaging, presentation and engagement with customers, guests and clients. This display features an ultra-bright screen and is waterproof. This commercial unit is completely sealed and carries an IP rating of IP65. Intelligently designed with AR glare-free tempered glass for extreme outdoor cases, a steel-made outer casing with anti-corrosion, damp proof qualities and a in-house constructed ultra-bright module for glare prevention, bringing superior visual experience in outdoor conditions. An electrical protection system is adopted to eliminate any possible security concerns. It can operate continuously, in all weather conditions for 24 hours and provide an optimum viewing experience, without being interrupted by harsh climate conditions.
Applications:

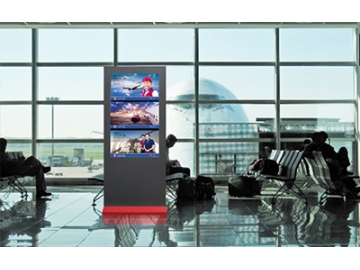

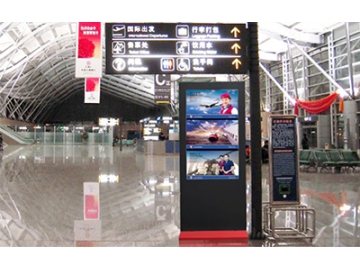

This freestanding LCD digital signage is perfect for any outdoor space and is optimized for interactions, like commercial venues, city roads, plazas, outdoor presentations of public information, media communication and touch screen service.
| Freestanding LCD Digital Signage | |||
| Models | SW55L20 | SW43L20 | SW65L20 |
| Application field | Outdoor | ||
| IP rating | IP65 | ||
| LCD screen | |||
| Dimension | 55 Inch | 43 Inch | 65 Inch |
| Aspect ratio | 16:9 | ||
| Brightness | 2000nits | ||
| Resolution ratio | 1920*1080 or 3840X2160 | ||
| Contrast ratio | 5000:1 | ||
| Viewing angle | 178°/178° | ||
| Response time | 6ms | ||
| Lifetime | 50000h | ||
| Outdoor advertising screen display | |||
| Material | Cold steel plate SPCC | ||
| Panel | 4mm tempered glass | ||
| Unit dimension | 2050*230*880mm | 1900*230*760mm | 2400*230*1150mm |
| Unit Packing | 2250*360*1000mm | 2100*360*880mm | 2600*360*1270mm |
| Unit Weight | 175kg | 140kg | 210kg |
| Installation method | Floor standing | ||
| Main hardware index | |||
| Operation system | Android5.1.1 | ||
| CPU | RK3288 | ||
| GPU | ARM Mali-T764 | ||
| Internal storage | 2G | ||
| Flash | 8G/16G | ||
| 3G | YES | ||
| Basic ports | |||
| Port | HDMI IN, HDMI OUT, RJ45, SD, EARPHONE, USB*2 | ||
| Speaker | 2*8W | ||
| Functions | |||
| Video display | WMV MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv | ||
| Audio display | MP3, WMV | ||
| Picture format | JPG, JPEG, BMP, PNG, GIF | ||
| Text format | TXT | ||
| OSD language | English, French, Spanish | ||
| Electrical specifications | |||
| Power input | AC input | ||
| Power supply | AC 110V~220V | ||
| Working environment | |||
| Working temperature | -20~55 degree | ||
| Working humidity | ≤80% | ||
| Storage temperature | -20~60 degree | ||
| Others | |||
| Accessories | Power cord, WIFI cable, remote control | ||
- Ultra-bright, unsurpassed visual quality: Ultra-bright with brightness up to 2000nits, high-definition screen, glare-free.
- AR glare-free tempered glass: With a 4mm superior glare-prevention glass, which is glare and ultraviolet-resistance, for a brighter LCD screen image.
- Water and dust-proof are available with an IP65 rating: The displays are carefully designed to avoid the intrusion of dust and water with an IP rating up to IP65.
- Steel-made outer casing: Made of galvanized steel sheet, with outdoor powder-coating for any harsh climate conditions.
- Waterproof loudspeaker: designed with a waterproof loudspeaker featuring superior sound quality.
- Modular design: The commercial display is designed intelligently, making it durable and maintenance-friendly.
- Available with Android or Windows systems.
- A wide array of different ports for you to choose from.
- Touch screen is optional.

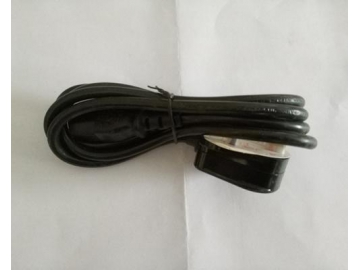

- Power cord

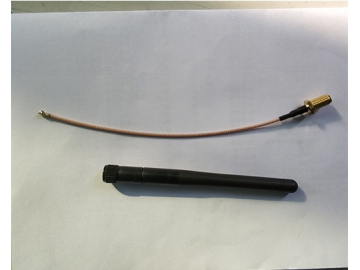

- WiFi antenna

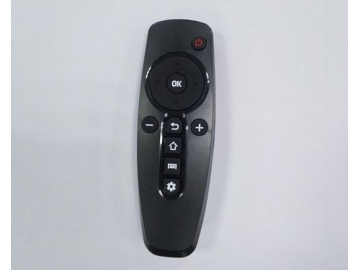

- Remote control
Installation:
Floor standing
