Digital Menu Board

: http://ltprintingservice.com/28-menu-printing.html

Description

The digital menu board is a digital sign most often used for commercial purposes.
The luminance reaches 500nits, and displays in 1080P definition, thus providing a great visual experience to audiences.
The digital menu board can be put together in a variety of ways, and is designed to support both lateral and vertical joints in order to offer a variety of showcase methods.
The super-narrow bezel highlights the joint effect.
Our digital menu board is equipped with the latest Android system in order to satisfy most user operating habits.
The digital menu board is also equipped with internal professional menu release software, which supports remotely modified released content simply with the push of a button on your smart phone.

Application

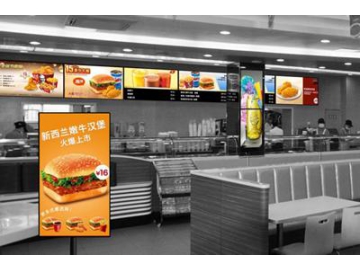

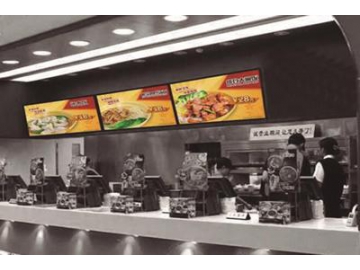

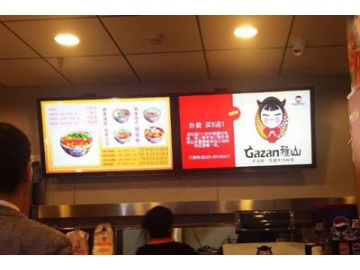

This digital menu board can be used in many places, such as restaurants and clothing shops.

Parameters

Digital Menu Board
Version	S32D5	S43D5	S50D5
Applied scenes	Indoor, semi-outdoor
LCD panel
Size	32 inches	43 inches	50 inches
Display scale	0.672916667
Luminance	300nits/500nits
Image resolution	1366*768	1920*1080 or 3840X2160	1920*1080 or 3840X2160
Contrast ratio	125.0006944	166.6673611	166.6673611
View angle	176°/176°
Response time	9ms
Service life	50000h
Frame
Material	Plastics
Color	Black
Dimension of frames	top, left, right: 10.2mm; bottom: 19.4mm	top, left, right: 10.8mm; bottom: 15.9mm	top, left, right: 14.7mm; bottom: 19.8mm
Dimension of bare machine	73070434mm	96874614mm	112476653mm
Weight of bare machine	4.3kg	8.5kg	10.3kg
Assembling method	Wall-hanging, hanging
Primary hardware index
Operating system	Android 6.0
CPU	Amlogic S905X cortex-A53
GPU	ARM@mail-450
RAM	2GB
Flash	8GB
Essential connector
connectors	HDMI1, RJ451, USB2, RS2322(RJ45)
Loudspeaker	4*5W
Functions
Video	AVI, rm, rmvb, MKV, WMV, MOV, MP4, DAT, VOB, PMP, MPEG, MPG, FLV, ASF, TS, TP, 3GP, MPG
Audio	MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
Picture format	JPG, JPEG, BMP, PNG, GIF
Text format	TXT
OSD language	Chinese, English, etc.
Electrical Specifications
Power supply mode	AC
Power supply	AC 110V-220V
Power dissipation	2*8W
Working environment
Working temperature	0℃~50℃
Working humidity	10%~80%
Storing temperature	-20℃~60℃
Other parameters

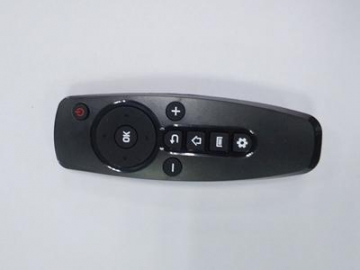

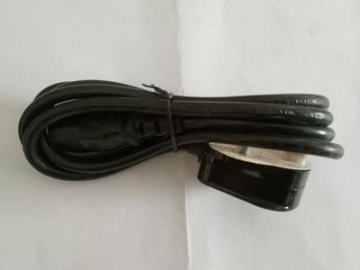

Accessories	power line, remote control, etc.
Packaging dimension	805137505mm	1062139647mm	1222141748mm
rough weight	5.8kg	10kg	13.5kg

Characteristics of digital menu board

Unique design: The four equilateral frames on the digital menu screen offer a more aesthetically pleasing appearance.
High luminance and high definition: 500 nits of luminance paired with a 1920 x 1080 resolution ration offer a clear, crisp display.
Flexible joint methods: the digital menu board is designed to support lateral and vertical joints.
The super-narrow bezel highlights the joint effects.
Our digital menu board is equipped with the latest android system in order to satisfy most user operating habits.
The digital menu board is equipped with internal, professional menu release software, which supports release of remotely modified content using a mobile phone.

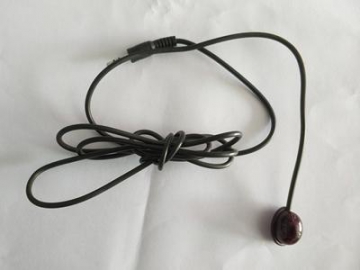

Optional accessories

Assembly method
Wall-hanging, hanging
