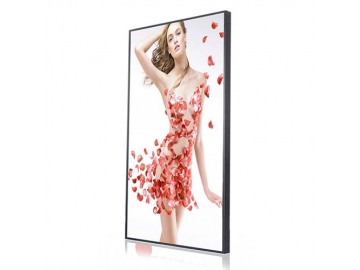

Indoor Freestanding LCD Display Digital Signage
Description
- The indoor freestanding LCD display digital signage is an advertising display primarily used for commercial purposes. Aluminum profiles are used as the covered edge, similar to an iPhone. Tempered glass is used on the face in order to improve safety and reliability when used in public.
- Pulleys are optional, and can be installed on the display sign's cradle in order to make movement easier and more convenient.

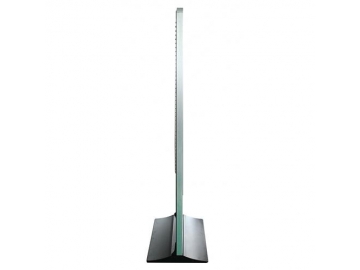

- The digital touch screen display is only 50mm think, and the bottom main board is 70mm thick. This slim design offers users a more comfortable visual experience.
- The native resolution, 1920 x 1080 or 3840X2160 works directly with advertising sign display solutions independently developed by KONTECH, and prevents bad performances when images are fine tuned. This satisfies customers from all over the world for their various display needs, and offers an excellent cost performance.
Application

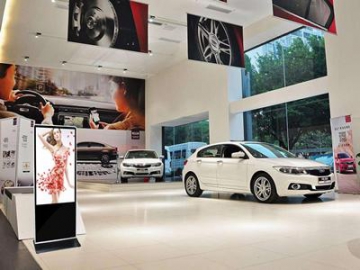

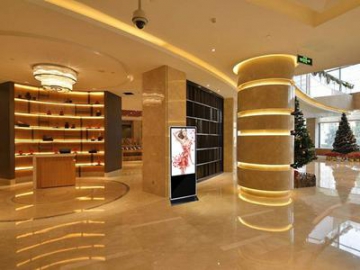

This indoor digital touch screen advertising display is useful for just about any public location, from shops to hotels, to hospitals and everything in between.
| Indoor Freestanding LCD Display Digital Signage | |||
| Version | ST43QL | ST55QL | ST65QL |
| Applied scenes | Indoor | ||
| LCD panel | |||
| Size | 43 inches | 55 inches | 65 inches |
| Display scale | 0.672916667 | ||
| Luminance | 350nits | ||
| Image resolution | 1920*1080 or 3840X2160 | ||
| Contrast ratio | 125.0006944 | ||
| Color expressivity | 16.7M | ||
| View angle | H: 178° V: 178° | ||
| Backlight type | LED | ||
| Response time | 6.5ms | ||
| Frame | |||
| Material | aluminum front frame, Apple-model metals enclosures, tempered glass and mobile cradle(optional) | ||
| Color | Black | ||
| Dimension of bare machine | 1750*84.7*635mm | 1900*84.2*791mm | 2270*220*1021mm |
| Weight of bare machine | 46kg | 65kg | 100 kg |
| Assembling method | floor stand | ||
| Primary hardware index | |||
| Operating system | Android | ||
| CPU | Amlogic, S905X, Quad-Core ARM | ||
| GPU | Five-Core ARM Mali-450, 750MHz+(DVFS) | ||
| RAM | 2G DDR | ||
| Flash | 8GB FLASH | ||
| WIFI | WIFI802.11b/g/n | ||
| LAN | 10/100M | ||
| Supported Expansion | micro SD/TF card 32GB | ||
| Essential connector | |||
| Connectors | HDMI*1,VGA*1(optional), DVI*1(optional), computer audio input*1(optional), R/L audio output*1, USB2.0*3, RS232*2(RJ45input/output), infrared input*1(RJ45), infrared output*1(RJ45), earphone*1, Ethernet*1(RJ45) | ||
| Loudspeaker | 2*8W | ||
| Functions | |||
| Video | AVI, rm, rmvb, MKV, WMV, MOV, MP4, DAT, VOB, PMP, MPEG, MPG, FLV, ASF, TS, TP, 3GP, MPG | ||
| Audio | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV | ||
| Picture format | JPG, JPEG, BMP, PNG, GIF | ||
| Text format | TXT | ||
| OSD language | Chinese, English, etc. | ||
| Electrical Specifications | |||
| Power supply | 110-240V AC | ||
| Working environment | |||
| Working temperature | -20℃~45℃ | ||
| Working humidity | 10%~80% | ||
| Storing temperature | -20℃~60℃ | ||
| Other parameters | |||
| Accessories | warranty card*1, cradle*1, remote control(with battery)*1 | ||
| Packaging dimension | 1865*175*715mm (carton) | 2055*195*895mm (honeycomb cardboard box) | 2382*332*1133mm |
| rough weight | 49kg | 69kg | 107kg |
| Controller | infrared remote control, touch control | ||
- This product supports a variety of formats, so that advertisements, cartons and PPT can all be successfully displayed.
- Advanced technology is used to ensure a rich picture layer, color depth and natural color display.
- The indoor freestanding LCD display digital signage is produced using a new LED processing line, and is equipped with an intelligent master control chip to reduce costs and power dissipation.
- The indoor freestanding LCD display digital signage achieves a cycle play of full HD 1080P.
- Timing function: advertisements can be played on time, and users can set a start and turn off period.
- Shocked sound effects provide a stronger publicity effect.
- We equipped the advertising display with Android 5.1, which supports a variety of apps, and the latest industrial CPU S950X.
- The software system is optional. Advertisements can be published in bulk quickly and easily, using a remote network.
- The apple-model design is more fashionable and attractive.
- The luminance of the indoor freestanding LCD display digital signage is 350cd/m², which is more eye-catching, beautiful and clean.

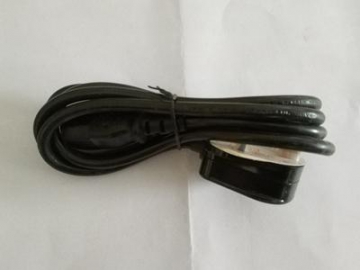

- Power line
- Instruction book

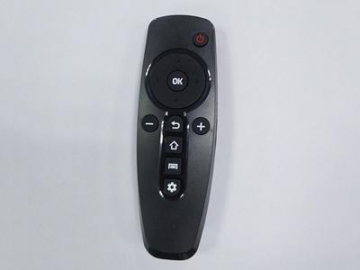

- Remote control
Assembling method
floor stand
