Indoor LED display

: http://qcledlighting.com/1-3-led-spotlight.html

Based on SMD technology, Frida’s indoor LED display provides a seamless, high-resolution and high-brightness display solution, with an intelligent image quality performance. Its lightweight design makes the display easy to install and maintain.

LED video wall, LED display and LED screens are available for customers to choose from.

Parameter

Model	Pixel Pitch	Pixel Density	Module Size	LED Configuration	Brightness (CD/㎡)
P2.5	2.5mm	160000	160*160mm	SMD2121	1300-1400
P3	3mm	111111	192*96mm	SMD2121	1100-1300
P4	4mm	62500	256*128mm	SMD2020	1000-1300
P5	5mm	40000	160*160mm	SMD3528	1200
P6	6mm	27777	192*192mm	SMD3528	1200-1500

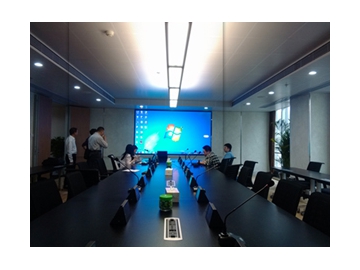

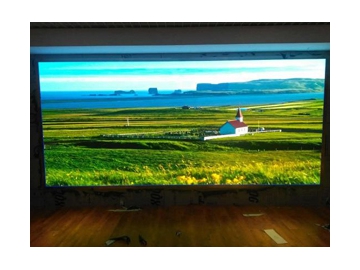

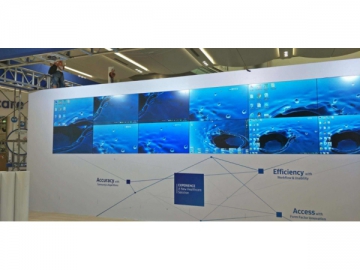

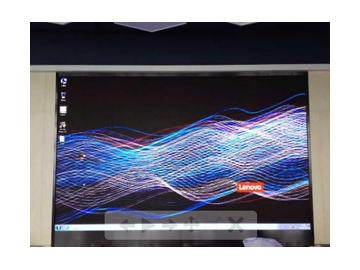

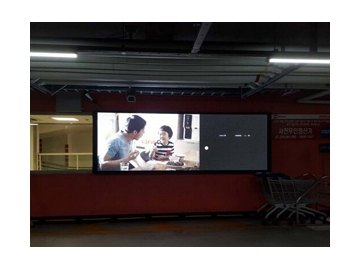

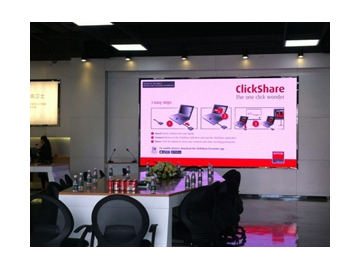

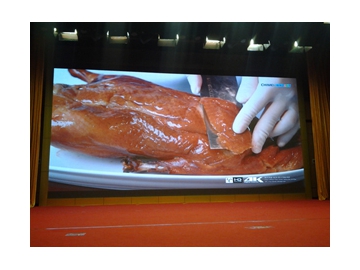

Photo Gallery

Display

Frida can customize the display effect and resolution according to customer requirements for indoor LED screens.
With 1000 cd / m² brightness and excellent color uniformity, the display shows a full color surface mount.
The indoor LED display has intelligent functions, including replaying, looping, planning and statistics recording.
The large viewing angle (H: 140°V: 140°) ensures a clear image for more viewers.
It can display 24 hours a day.

Structure

With galvanizing and phosphating, its module cabinet is rust resistant.
The tolerance of the entire LED video wall is ±0.2mm, ensuring the image is not distorted and offers a clear, high quality viewing experience.
Reflow soldering on PCB creates an oxygen insulating layer, which avoids moisture and oxidation and ensures a long service life.
With IP43, the screen is water resistant.
