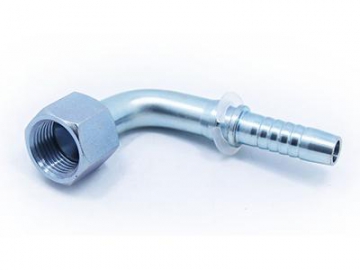

26793-W JIC 90° Elbow Female 74° Cone Fittings

26793-W JIC 90° Elbow Female 74° Cone Fittings

Application: for use with hydraulic braided hoses

Materials:
  • Stainless steel JIC 90° elbow female 74° cone fittings
  • Carbon steel JIC 90° elbow female 74° cone fittings
26793-W JIC 90° Elbow Female 74° Cone Fittings List

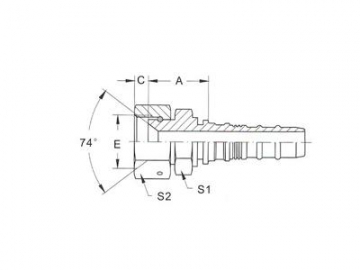

Part No. Thread Hose Bore Dimensions
DN DASH A C H S2
26793-12-12W 1.1/16''×12 20 12 73.8 15 64.5 32
26793-16-16W 1.5/16''×12 25 16 88.9 16 72.5 41
26793-20-20W 1.5/8''×12 32 20 105.8 16.1 81.5 50
26793-24-24W 1.7/8''×12 40 24 124.2 20 101 55
26793-32-32W 2.1/2''×12 50 32 150.3 23.5 121.3 75
