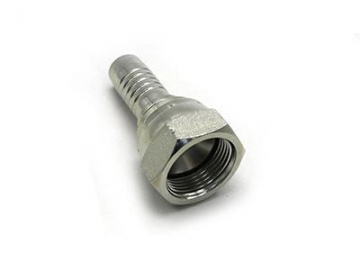

26713D-W JIC Straight Female 74° Cone Fittings
Application: for use with hydraulic braided hoses
Materials:- Stainless steel JIC straight female 74° cone fittings
- Carbon steel JIC straight female 74° cone fittings
| Part No. | Thread E | Hose Bore | Dimensions | |||||
| DN | DASH | A | C | S1 | S2 | |||
| 26713D-12-12W | 1.1/16''×12 | 20 | 12 | 37.5 | 15 | 30 | 32 | |
| 26713D-16-16W | 1.5/16''×12 | 25 | 16 | 41.9 | 16 | 38 | 41 | |
| 26713D-20-20W | 1.5/8''×12 | 32 | 20 | 45.3 | 17 | 46 | 50 | |
| 26713D-24-24W | 1.7/8''×12 | 40 | 24 | 50.2 | 20 | 50 | 60 | |
| 26713D-32-32W | 2.1/2''×12 | 50 | 32 | 52 | 23.5 | 65 | 75 | |
