26791(W)(K) JIC 45° Elbow Female 74° Cone Fittings, J514
Application: for use with hydraulic braided hoses
Materials:- Stainless steel JIC 45° elbow female 74° cone fittings, J514
- Carbon steel JIC 45° elbow female 74° cone fittings, J514

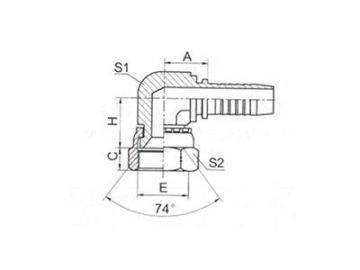

| Part No. | Thread | Hose Bore | Dimensions | ||||||
| E | DN | DASH | A | C | H | S1 | S2 | ||
| 26791K-04-04 | 7/16"×20 | 6 | 04 | 17.5 | 9 | 18 | 11 | 15 | |
| 26791K-06-04 | 9/16"×18 | 6 | 04 | 20 | 10.5 | 20.5 | 14 | 19 | |
| 26791K-06-06 | 9/16"×18 | 10 | 06 | 20 | 10.5 | 20.5 | 16 | 19 | |
| 26791K-08-06 | 3/4"×16 | 10 | 06 | 23 | 11 | 25 | 19 | 24 | |
| 26791K-08-08 | 3/4"×16 | 12 | 08 | 23.5 | 11 | 25 | 22 | 24 | |
| 26791K-10-08 | 7/8"×14 | 12 | 08 | 25 | 13 | 27 | 22 | 27 | |
| 26791K-10-10 | 7/8"×14 | 16 | 10 | 25 | 13 | 27 | 22 | 27 | |
| 26791K-12-12 | 1.1/16"×12 | 20 | 12 | 29 | 15 | 31 | 27 | 32 | |
| 26791K-16-16 | 1.5/16"×12 | 25 | 16 | 43 | 16 | 34.3 | 33 | 41 | |
