Peripheral Drive Sludge Scraper
Applications

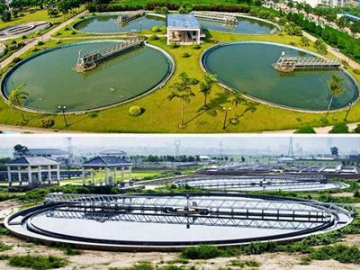

The peripheral drive scraping machine is produced for sludge scraping and removal for circular radial flow sedimentation tanks with diameters greater than 15 meters in water or sewage treatment plants. This peripheral drive scraping equipment is often employed in sludge treatment for industrial applications including urban construction, chemical, textile and metallurgy. The highly engineered structure features high efficiency, convenient operation, and easy maintenance, making it a vital sewage treatment support device.
Design Details

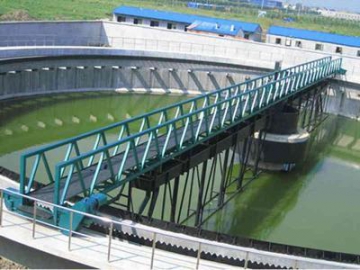

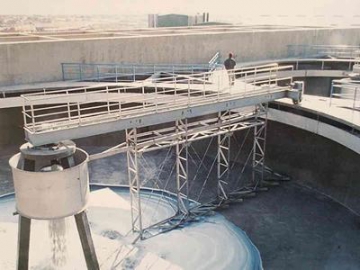

The peripheral scraping sludge machine rotates along the top edge of the pool. The transmission part drives the work bridge along the pool surface, and the scraping arm rotates when the scrapers collect sludge into the center mud bucket. The floating slag scraper works at the same time to collect and remove the slag out of the pool.
Main Structures
The peripheral drive scraping sludge machine is composed of a work bridge, center support, center barrel, center sludge cylinder, steady flow device, quantity regulating valve, sludge discharging groove, suction device and scraper, slag outlet, slag-skimming system, transmission device and other parts.
1. Guide tube
2. Center supporting base
3. Sludge tank
4. Scraper
5. Revolving truss
6. Slag outlet
7. Water place

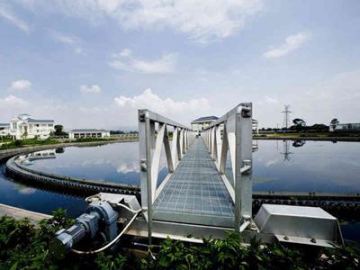

8. Drive device
Automatic Control
A control box is installed at the site. The control box has "on", "Off", "emergency stop" buttons and signal lights. The PLC control module can also be installed according to user requirements.
Features
(1) The transmission part uses double overload protection of electrical and mechanical to ensure a safer and more reliable operation.
(2) The underwater part is made of stainless steel with high corrosion resistance, and provides a long service life.
Customization Notes
Please provide the size and material requirements of the sedimentation tank.
