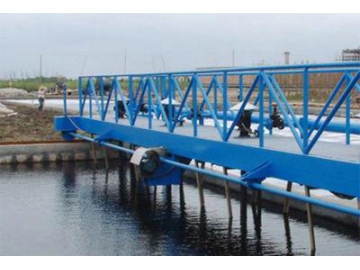

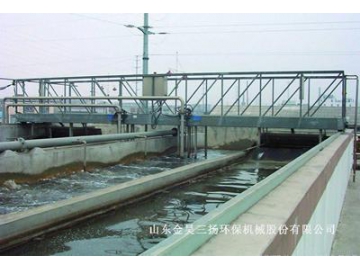

Truss Type Sludge Scraper
Applications
The truss type sludge scraper is high quality sludge discharging equipment installed on rectangular advection sedimentation tanks. The machine features a simple structure, stable transmission, low running cost, and excellent scraping effects. It is ideal for sludge discharging operations in sewage treatment.
Application areas: steel, metallurgy, mining, sewage treatment and other industries.
Design Details
The truss type scraper generally stops at the inlet. When the walking deceleration machine is started, the scraper begins to move toward the inlet. When it reaches the inlet, the truss car touches the limit switch, and deceleration machine is stopped. The hoist construction starts to lift the scraper. When it reaches the liquid level of 100mm, the walking deceleration machine starts to run in reverse to discharge dregs. After that, the hoist model will move the scraper to the bottom (this is the end of a work cycle).
The scraper waits for the next order to repeat the work above, until the pool bottom sludge and surface scum are removed.
Main Structures
The truss type sludge scraper is composed of a working bridge, transmission device, scraping device, travel controlling mechanism and other components.
Automatic Control
A control box is installed at the site. The control box has "on", "Off", "emergency stop" buttons and signal lights. PLC control module can also be installed according to user requirements.
Features
(1) Truss structure is light-weight. The underwater part is made of 304 stainless steel that provides a long lifetime.
(2) The work cycle runs smoothly with low energy consumption.
(3) The Walking wheel is made of steel to ensure the service life.
(4) High automation, reducing labor intensity, and is easy to operate and maintain. Low failure rate.
Customization Notes
Please provide the size and material requirements of the sedimentation tank.
Huaneng Jinhao manufactures water treatment equipment and domestic sewage treatment plant to global markets, with decades of experience, we can fabricate any water treatment equipment and machinery like industrial water decanter, water filtration equipment, sludge separation equipment, and the auxiliaries of water treatment equipment.
