(C Series) LED Cylinder Track Head with Built-in Drive
Features
- The color render index (CRI) is Ra97 (2700K/3000K/4000K), which displays the natural color of objects
- The LED driver of the track light is of high quality, high efficiency and energy saving.
- Lenses and reflectors are available in two optical forms. They are suitable for different areas of lighting.
- We provide three kinds of track adapter with 1 phase, 2 phase or 3 phase for you to choose from.
- Four kinds of power: 15W, 25W, 35W and 45W are available.
Specification
- Power 15W/25W/35W/45W
- LED Chip Citizen/CREE COB
- LED DriverPrivate power supply available
- PF>0.9
- Input Voltage AC220-240V/AC100-240V 50/60Hz
- Beam Angle 12°,25°,36°(lens), 15°,24°,38°,60°(reflector)
- Body Material 6063 brushed aluminum alloy
- Adjustable350° rotation horizontally and 90° pivot
- Housing color Black/white
- Track adapter Global, PowerGear and other brands are available
- Phase1 /2 /3 phase
- Lifespan 50000 hours
- Warranty3-5 Years
Dimensions

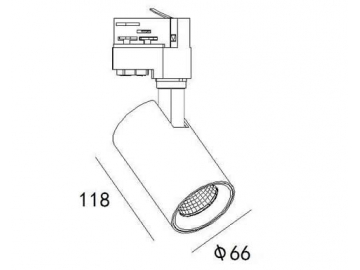

- 15W

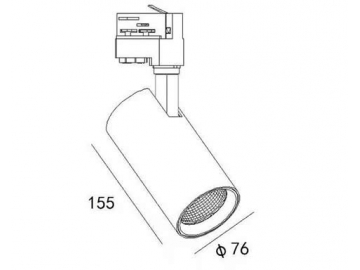

- 25W

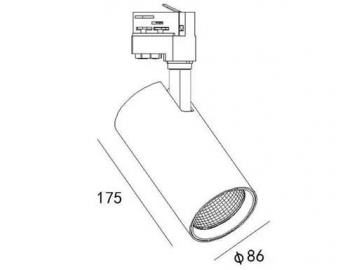

- 35W

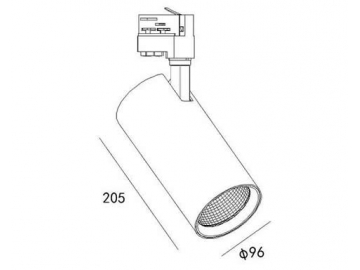

- 45W
Product Models
| Model No. | Power | Dimension | LED Chip | CCT | CRI | Luminous Efficacy | |
| BH-TL-15W-C | 15W | Φ66*L118mm | Citizen/ CREE COB | 2700K 3000K 3500K 4000K 5000K | 80 90 97 | 90-100lm/W @CRI80 (whole lamp) | |
| BH-TL-25W-C | 25W | Φ76*L155mm | |||||
| BH-TL-35W-C | 35W | Φ86*L175mm | |||||
| BH-TL-45W-C | 45W | Φ96*L205mm |
Photometric

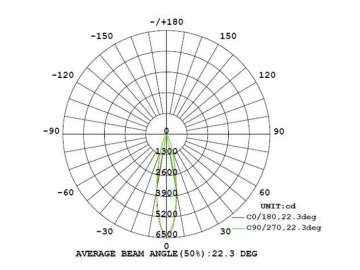

- Luminous Intensity Distribution Diagram 15W 3000K Beam Angle 24°
- The Average Illuminance Effective Figure 15W 3000K Beam Angle 24°
