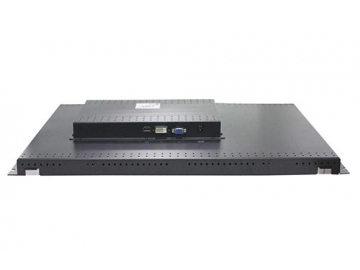

Open Frame LCD Monitor

: http://dentalchairpackage.com/4-dental-monitor-arms.html

Description

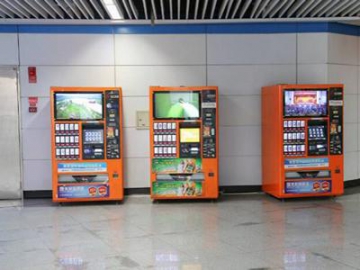

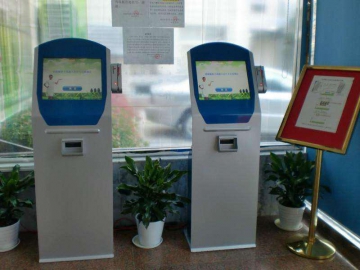

The open frame monitor is suitable for most embedded equipment, including game machines, inquiry equipment, gambling equipment and more.

Parameters

Open Frame LCD Monitor
PANEL SPEC
Available Size	15.6", 18.5", 21.5", 23.6", 27", 31.5", 43", 49", 55", 65"
Resolutions	1366768, 19201080, 3840*2160
View Angle	up to 178° (H) /178° (V)
Response Time	5ms
Aspect Ratio	16*9
Contrast Ratio	up to 5000:1
Backlight	LED
Support Color	16.7M Colors
Surface Treatment	Anti-Glare, 3H
OSD Language	Customize
CONNECTORS
HDMI	YES x2
USB	YES x 1
RS232 input	YES x 1
RS232 output	YES x 1
PC Audio input	YES x 1
Audio output	YES x 1
DC	YES x 1
POWER SUPPLY
Power Input	Optional to have DC input or AC input
Power OFF Model	Stand by＜0.5W, Power off＜0.5W
Power Manage	YES
WorKing Condition
Relative Humidity	≤80%
Storage Temperature	-10 ~ 50℃
Ambient Temperature	0 - 40℃
Others Functions
Key Function	Power, Menu, Right, Left, Auto
Touch Type	IR touch, Capacitive touch
Waterproof	YES
Installation	Side mount bracket, Wall-mounted

Characteristics of Open Frame LCD Monitor

Users can choose from a variety of sizes.
The luminance can be customized according to working environments.
Infrared touch and capacitive touch can be chosen.
DC supply and AC supply can be chosen.

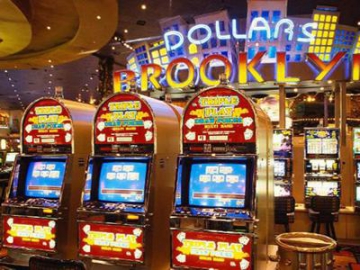

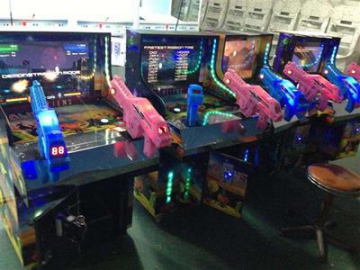

The exoteric structure is suitable for just about all equipment on the market, from gambling equipment to video game machines and everything in between.
Closed and exoteric structure can be chosen.
Side mounting support

Optional accessories

Instruction book

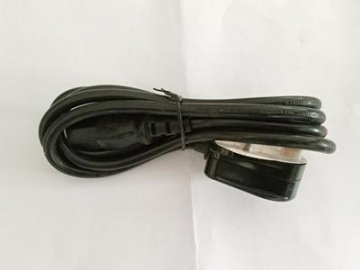

Power line

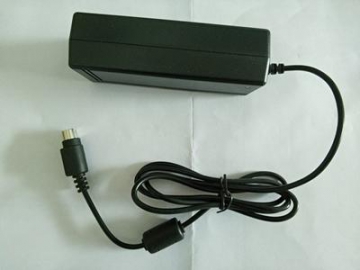

Adapter

Assembling method
Wall-hanging, side mounting
