The NHG grid type wastewater decontamination machine is designed for large-scale intake structures, a variety of pumping stations, and water inlets of wastewater treatment plants as it separates residue and ensures subsequent water equipment is able to operate normally.

Details of Grid Type Wastewater Decontamination Machine

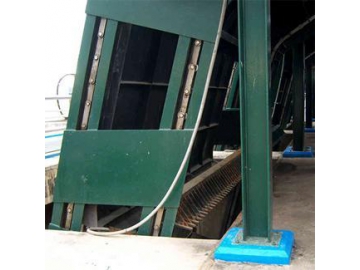

  • Back of the machine

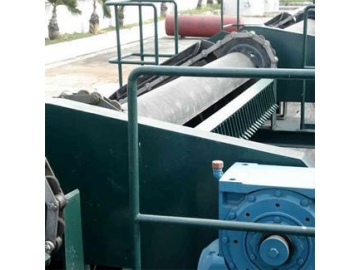

  • Side of the machine

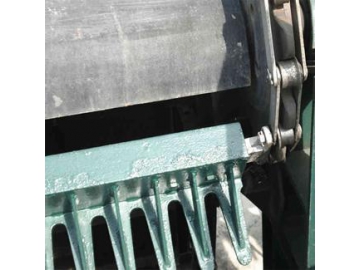

  • Rake teeth

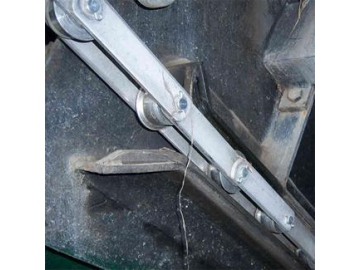

  • Chain
Design principle

The grid type wastewater decontamination machine is installed obliquely within sewage pipes, and forms a dip angle on the ground. The rake bars and machine rack are fixed together to separate the residue from the water with these rake bars. The wastewater decontamination machine is equipped with chain guides on both sides, there are multiple rake bars between the transmission chains for residue separating, and the rake teeth deeply penetrate into the screen bar spacing to remove the residue via the transmission chains. The grid type wastewater decontamination machine consists of grid transmission unit, machine rack, residue rakes, skimmer and electrical control unit.

Parameters of the grid type wastewater decontamination machine
Type NHG-800 NHG-1000 NHG-1200 NHG-1400 NHG-1600 NHG-1800 NHG-2000 NHG-2200 NHG-2400 NHG-2600 NHG-3000
Install angle (α) 60-85°
Motor power (kW) 0.75-1.1 1.1-2.2 3.0
Effective grid width B1 (mm) B1=B-160
Linear velocity of the rake teeth (m/min) 3.8
Machine width B (mm) 800 1000 1200 1400 1600 1800 2000 2200 2400 2600 3000
The total height of machine H (mm) H=H1+H2+860
The total width of machine B2 (mm) 1150 1350 1550 1750 1950 2150 2350 2550 2750 2950 3350
Ditch width B3 (mm) 900 1100 1300 1500 1700 1900 2100 2300 2500 2700 3100
Unloading height H2 (mm) 600-1500
Ditch depth H1 (mm) 500-12000 (User defined)
Civil engineering embedded part

Features of the grid type wastewater decontamination machine
(1) High automation: The operation methods include manual control, inching control and automatic timing control.
(2) Operating flexibly: The user can adjust the interval according to their needs and complete the periodic operation.
(3) Since the grid type wastewater decontamination machine has an automatic cleaning device, the machine will not be blocked during operation and it does not require significant maintenance.
(4) The rake teeth are made of stainless steel or nylon for excellent corrosion resistance.

Customization notice
The grid type wastewater decontamination machine uses different kinds of materials and it can be customized according to customer requirements, such as civil engineering ditch width, ditch depth, and spacing between the teeth of the rakes.

The groove depth of the grid type wastewater decontamination machine is customized by the customer according to their needs in practical application. The groove depth of the machine is usually no less than 0.5m and no more than 15m.
