Architectural Lighting LED Floodlight RGBL RGBA RGBW Code AM733SCT-SWT-CAT LED Light
- Equipped with advanced intelligent color management system CCS, can achieve perfect color effect.
- Adopt the new four-in-one LEDs and combine with the scientific secondary optical design to realize perfect lighting effect.
- Lightning protection design and high performance stability.
- Automatic addressing function and can automatically allocate address code.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
- Combine with the scientific secondary optical design to realize perfect lighting effect.
Product Parameters
| Model | AM733SCT | AM733SWT | AM733CAT |
| Input Voltage | AC100~240V | AC100~240V | AC100~240V |
| Max. Power | 350W | 350W | 350W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 17811lm | 16920lm | 13785lm |
| Peak Beam Intensity | 1108800cd(4°) | 942480cd(4°) | 88205cd(4°) |
| LED Quantity | 36pcs cool white | 36pcs warm white | 36pcs amber+cool white |
| Optical Angle | 4°, 10°, 20° | 4°, 10°, 20° | 14° |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -40°C~45°C (startup) | -40°C~45°C (startup) | -40°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 881x252x381mm | 881x252x381mm | 881x252x381mm |
| Weight | 31.3KG | 31.3KG | 31.3KG |

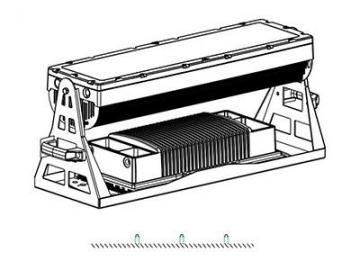

Dimensions
Illumination Contours

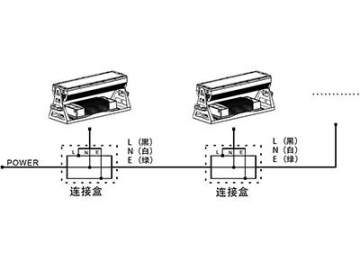

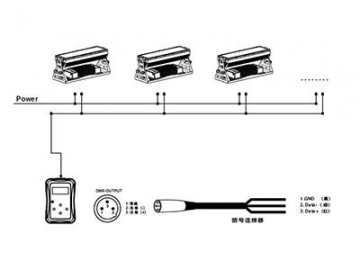

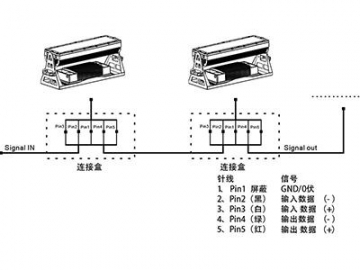

Installations
