Architectural Lighting Dimmable LED Floodlight Code AM732XCT LED Light
Characteristics
- Equipped with advanced intelligent color management system CCS, can achieve perfect color effect.
- Automatic addressing function and can automatically allocate address code.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
- Lightning protection design and high performance stability.
Product Parameters
| Input Voltage | AC100～240V |
| Max. Power | 900W |
| Power Factor | >0.9 |
| Lumen | 23904lm |
| Peak Beam Intensity | 2600571cd(4°) |
| LED Quantity | 72pcs (18R+18G+18B+18W) |
| Optical Angle | 4°, 10°, 20° |
| DMX Dimming | 0-100% |
| RTCP | DMX512, RDM |
| Controllable Sections | 2 |
| Power Connection | 3m cable input |
| Data Connection | 3m cable input / output |
| IP Rating | IP66 |
| Operation Temperature | -40°C~45°C (operation) |
| -40°C~45°C (startup) | |
| Housing Material | Die-casting aluminum |
| Housing Color | 871x252x569mm |
| Dimensions | White(optional: grey, black) |
| Weight | 45.3kg |

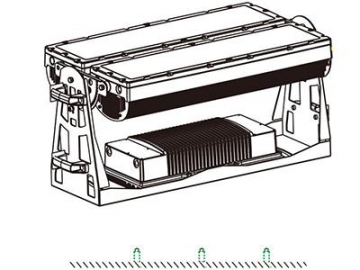

Dimensions
Illumination Contours

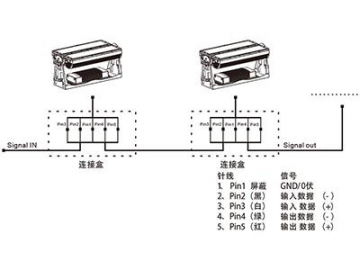

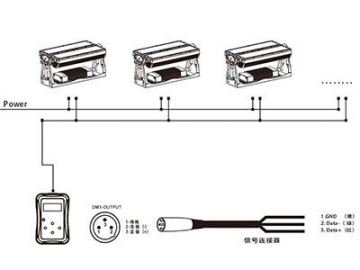

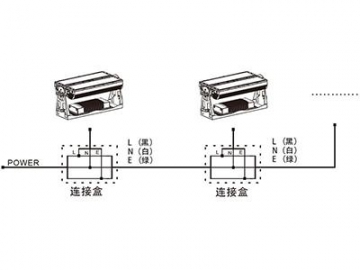

Installations
