Architectural Lighting 520W LED Floodlight Code AM722T-XWT LED Light
Characteristics
- Equipped with wireless receiving card to provide wireless control schemes for various high-power lighting projects.
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- Lightning protection design and high performance stability.
- Flexible adjustment of lamp head.
Product Parameters
| Model | AM722T | AM722XWT |
| Input Voltage | AC100~240V | AC100~240V |
| Max. Power | 520W | 520W |
| Power Factor | >0.9 | >0.9 |
| Lumen | 18200lm | 19300lm |
| Peak Beam Intensity | 533917(6°) | 519915cd(6°) |
| LED Quantity | 180pcs(60R+60G+60B) | 180pcs(48R+48G+48B+36W) |
| Optical Angle | 6°(12°, 25°, 45°, 40*12°) | 6°(12°, 25°, 45°, 40*12°) |
| DMX Dimming | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 2 | 2 |
| Power Connection | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output |
| IP Rating | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -40°C~45°C (startup) | -40°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 731x252x536mm | 731x252x536mm |
| Weight | 40KG | 40KG |

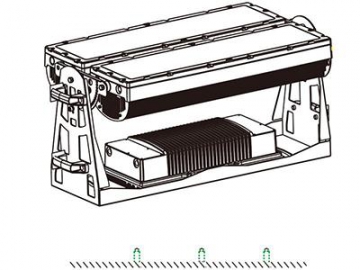

Dimensions
Illumination Contours

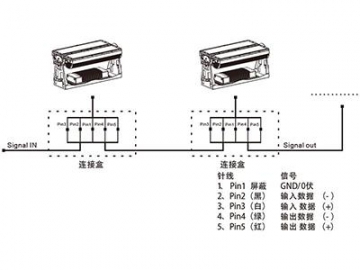

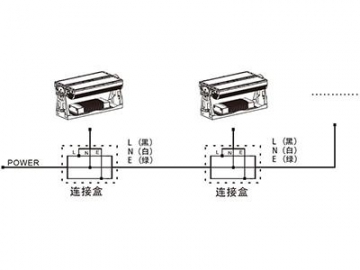

Installations
Optional Accessories
Anti-glare cover
