Architectural Lighting LED Floodlight 450W Code AM733XCT LED Lighting
- Equipped with advanced intelligent color management system CCS, can achieve perfect color effect.
- Adopt the new four-in-one LEDs and combine with the scientific secondary optical design to realize perfect lighting effect.
- Lightning protection design and high performance stability.
- Automatic addressing function and can automatically allocate address code.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
- Combine with the scientific secondary optical design to realize perfect lighting effect.
Product Parameters
| Model | AM733XCT |
| Input Voltage | AC100~240V |
| Max. Power | 450W |
| Power Factor | >0.9 |
| Lumen | 12704lm |
| Peak Beam Intensity | 1193737cd(4°) |
| LED Quantity | 36pcs(9R+9G+9B+9W) |
| Optical Angle | 4°, 10°, 20° |
| DMX Dimming | 0-100% |
| RTCP | DMX512, RDM |
| Controllable Sections | 1 |
| Power Connection | 3m cable input |
| Data Connection | 3m cable input / output |
| IP Rating | IP66 |
| Operation Temperature | -40°C~45°C (operation) |
| -40°C~45°C (startup) | |
| Housing Material | Die-casting aluminum |
| Housing Color | White(optional: grey, black) |
| Dimensions | 881x252x381mm |
| Weight | 31.3kg |
Dimensions
Illumination Contours

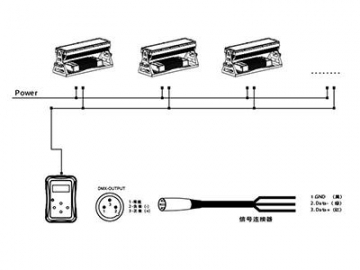

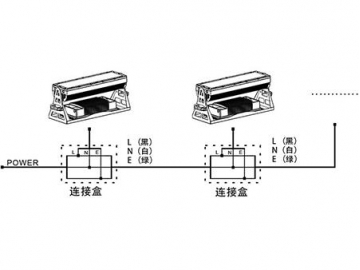

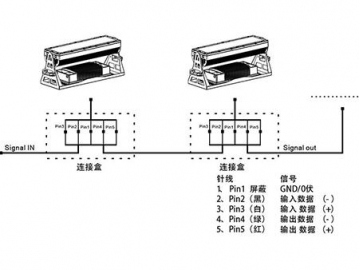

Installations
