Architectural Lighting 60W Linear LED Floodlight Code AM713T-XCET-XCT LED Lighting
Characteristics
- Automatic addressing function and can automatically allocate address code.
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
Product Parameters
| Model | AM713T | AM713XCET | AM713XCT |
| Input Voltage | AC100~277V | AC100~277V | AC100~277V |
| Max. Power | 60W | 60W | 60W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 2053lm | 2258lm | 3334lm |
| Peak Beam Intensity | 23000cd(15°) | 25300cd(15°)) | 30000cd(15°) |
| LED Quantity | 27pcs (6R+6G+6B) | 27pcs MultichipRGBW | 36pcs (6R+6G+6B+6W) |
| Optical Angle | 15°(10°, 25°, 30°, 60°, 15°*30°, 10*60°) | 15°(25°, 30°, 60°, 15°*30°, 10°*60°) | 15°(10°, 25°, 30°, 60°, 15°*30°, 10*60°) |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 3 | 3 |
| Power Connection | Integrated power and signal cable | ||
| Data Connection | |||
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operating) | -40°C~45°C (operating) | -40°C~45°C (operating) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Extruded aluminum | Extruded aluminum | Extruded aluminum |
| Housing Color | Silver | Silver | Silver |
| Dimensions | 915x62x84mm | 915x62x84mm | 915x62x84mm |
| Weight | 3.6KG | 3.6KG | 3.6KG |

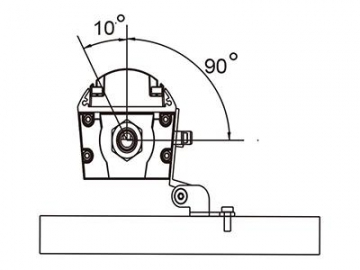

Dimensions
Illumination Contours

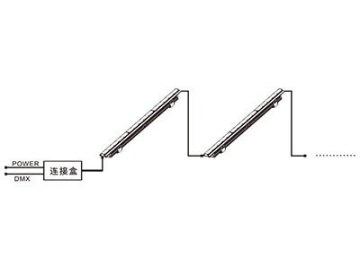

Installations
Optional Accessories
Anti-glare cover
