Architectural Lighting 105W LED Spotlight Code AM746XLET-XAET-XCET LED Light
Characteristics
- Lightning protection design and high performance stability.
- Lamp holder features infinite rotation 60°.
- AC100-277V wide voltage protection design, applicable to all countries.
Product Parameters
| Model | AM746XLET | AM746XAET | AM746XCET |
| Input Voltage | AC100~277V | AC100~277V | AC100~277V |
| Max. Power | 105W | 105W | 105W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 4200lm | 3200lm | 3400lm |
| Peak Beam Intensity | 45000cd(15°) | 37500cd(15°) | 42500cd(15°) |
| LED Quantity | 7pcs RGBL | 7pcs RGBA | 7pcs RGBW |
| Optical Angle | 15° | 15° | 15° |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 2 | 2 | 2 |
| Power Connection | 3m cable input/out | 3m cable input/out | 3m cable input/out |
| Data Connection | 3m cable input | 3m cable input | 3m cable input |
| IP Rating | IP67 | IP67 | IP67 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 315x242x390mm | 315x242x390mm | 315x242x390mm |
| Weight | 8.1kg | 8.1kg | 8.1kg |

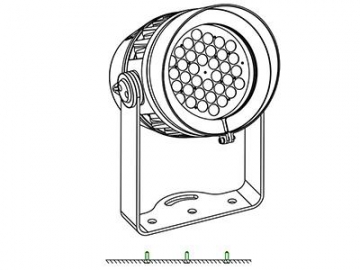

Dimensions
Illumination Contours

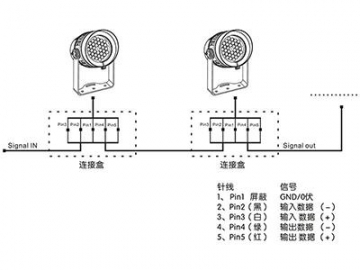

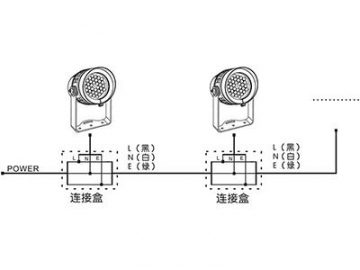

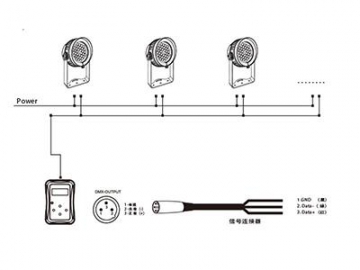

Installations
Optional Accessories
Anti-glare cover
