Architectural Lighting Energy Saving LED Spotlight Code AM748XLET-XAET-XCET LED Light
Characteristics
- Small in size and light in weight, suitable for installation in a small space for a small area of lighting.
- Equipped with intelligent RDM, two-way feedback function, real-time feedback of lamp failure and usage.
Product Parameters
| Model | AM748XLET | AM748XAET | AM748XCET |
| Input Voltage | AC100~240V | AC100~240V | AC100~240V |
| Max. Power | 15W | 15W | 15W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 550lm | 440lm | 470lm |
| Peak Beam Intensity | 4500cd(14°) | 3750cd(14°) | 4250cd(14°) |
| LED Quantity | 1pcs RGBL | 1pcs RGBA | 1pcs RGBW |
| Optical Angle | 14°, 25° | 14°, 25° | 14°, 25° |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP67 | IP67 | IP67 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 170x176x164mm | 170x176x164mm | 170x176x164mm |
| Weight | 1.7KG | 1.7KG | 1.7KG |

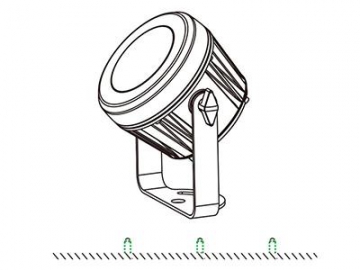

Dimensions
Illumination Contours

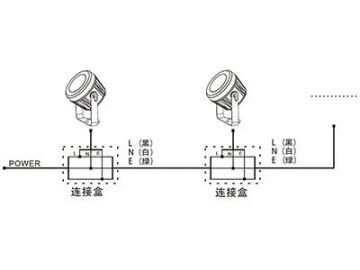

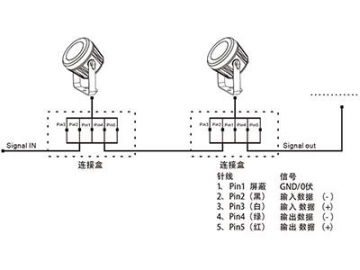

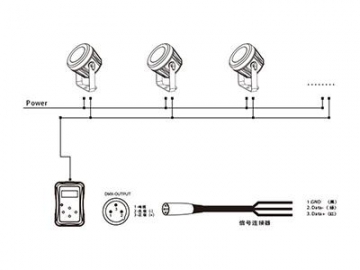

Installations
Optional Accessories
Anti-glare cover
