Architectural Lighting Waterproof LED Spotlight Code AM747XLET-XAET-XCET LED Light
Characteristics
- Lightning protection design and high performance stability.
- Lamp holder features infinite rotation 60 °, adjustable hood.
Product Parameters
| Model | AM747XLET | AM747XAET | AM747XCET |
| Input Voltage | AC100~277V | AC100~277V | AC100~277V |
| Max. Power | 180W | 180W | 180W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 5706lm | 4551lm | 5135lm |
| Peak Beam Intensity | 27038cd(22°) | 21630cd(22°) | 24335cd(22°) |
| LED Quantity | 14pcs RGBL | 14pcs RGBA | 14pcs RGBW |
| Optical Angle | 22° | 22° | 22° |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP67 | IP67 | IP67 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 354x283x450mm | 354x283x450mm | 354x283x450mm |
| Weight | 11KG | 11KG | 11KG |

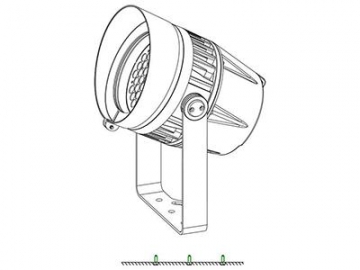

Dimensions
Illumination Contours

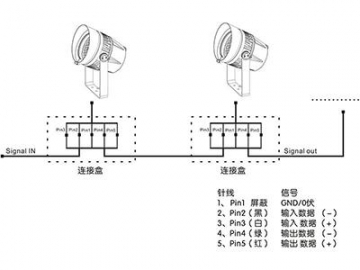

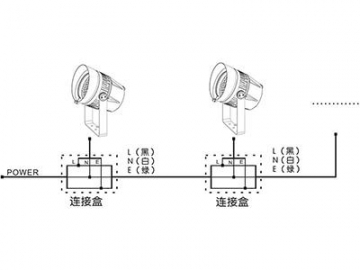

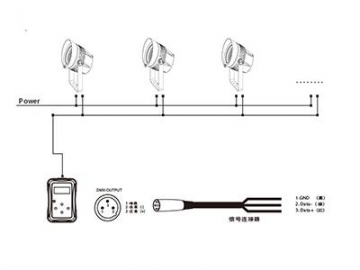

Installations
Optional Accessories
Anti-glare cover
