Architectural Lighting RGB RGBW LED Spot Light Code AM724T-XCT LED Lighting
Characteristics
- Compact structure, good waterproof performance.
- Various lens angles are optional and flexible for various project requirements.
- Lightning protection design and high performance stability.
- U type bracket, the base can rotate, the installation is more convenient.
Product Parameters
| Model | AM724T | AM724XCT |
| Input Voltage | AC100~240V | AC100~240V |
| Max. Power | 115W | 115W |
| Power Factor | >0.9 | >0.9 |
| Lumen | 3973lm | 2898lm |
| Peak Beam Intensity | 48100cd(12°) | 47505cd(12°) |
| LED Quantity | 40pcs(14R+14G+12B) | 40pcs(11R+12G+10B+7W) |
| Optical Angle | 12°(5°, 25°, 45°) | 12°(5°, 25°, 45°) |
| DMX Dimming | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output |
| IP Rating | IP67 | IP67 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 370x118x307mm | 370x118x307mm |
| Weight | 8.5KG | 8.5KG |

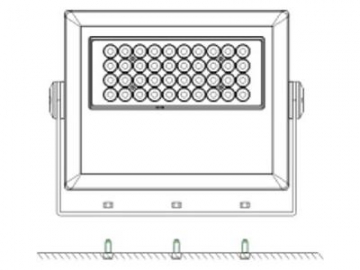

Dimensions
Illumination Contours

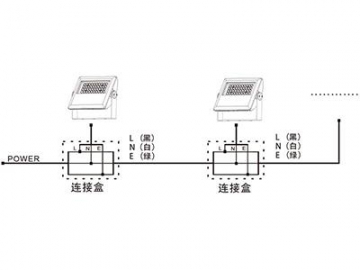

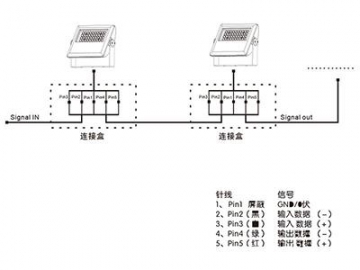

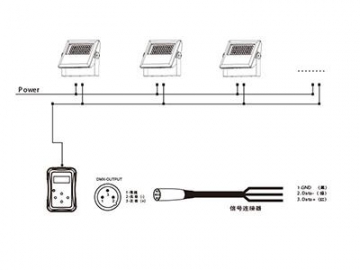

Installations
Optional Accessories
Anti-glare cover
