Architectural Lighting Flood LED Light Bar Code AM712T-XCET-XCT LED Lighting
Characteristics
- Automatic addressing function and can automatically allocate address code.
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
Product Parameters
| Model | AM712T | AM712XCT | AM712XCET |
| Input Voltage | AC100~277V | AC100~277V | AC100~277V |
| Max. Power | 40W | 40W | 40W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 1454lm | 2034lm | 1600lm |
| Peak Beam Intensity | 15600cd(15°) | 21500cd(15°) | 17160cd(15°) |
| LED Quantity | 18pcs (6R+6G+6B) | 24pcs (6R+6G+6B+6W) | 18pcs multichip RGBW |
| Optical Angle | 15°(10°, 25°, 30°, 60°, 15°*30°, 10*60°) | 15°(10°, 25°, 30°, 60°15°*30°, 10*60°) | 15°(25°, 30°, 60°, 15°*30°, 10°*60°) |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 2 | 2 |
| Power Connection | Integrated power and signal cable | ||
| Data Connection | |||
| IP Rating | IP66 | IP67 | IP66 |
| Operation Temperature | -40°C~45°C (operating) | -40°C~45°C (operating) | -40°C~45°C (operating) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | extruded aluminum | extruded aluminum | extruded aluminum |
| Housing Color | silver | silver | silver |
| Dimensions | 610x62x84mm | 610x62x84mm | 610x62x84mm |
| Weight | 2.4KG | 2.4KG | 2.4KG |

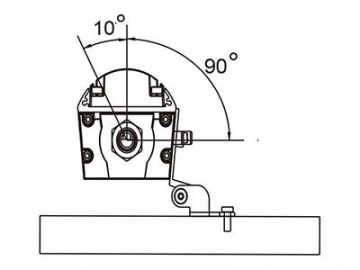

Dimensions
Illumination Contours

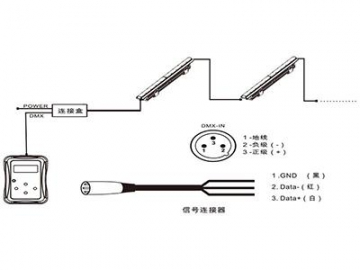

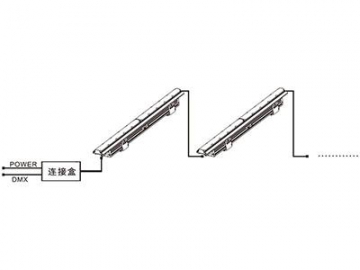

Installations
Optional Accessories
Anti-glare cover
