Architectural Lighting LED Flood Light Bar Code AM711T-XCET-XCT LED Lighting
Characteristics
- Automatic addressing function and can automatically allocate address code.
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
Product Parameters
| Model | AM711T | AM711XCET | AM711XCT |
| Input Voltage | AC100~277V | AC100~277V | AC100~277V |
| Max. Power | 20W | 20W | 20W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 784lm | 863lm | 989lm |
| Peak Beam Intensity | 7800cd(15°) | 8580cd(15°) | 11000cd(15°) |
| LED Quantity | 9pcs (3R+3G+3B) | 9pcs multichip RGBW | 12pcs (3R+3G+3B+3W) |
| Optical Angle | 15°(10°, 25°, 30°, 60°15°*30°, 10*60°) | 15°(25°, 30°, 60°, 15°*30°, 10°*60°) | 15°(10°, 25°, 30°, 60°15°*30°, 10*60°) |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | Integrated power and signal cable | ||
| Data Connection | |||
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operating) | -40°C~45°C (operating) | -40°C~45°C (operating) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | extruded aluminum | extruded aluminum | extruded aluminum |
| Housing Color | silver | silver | silver |
| Dimensions | 305x62x84mm | 305x62x84mm | 305x62x84mm |
| Weight | 1.2KG | 1.2KG | 1.2KG |
Dimensions
Illumination Contours

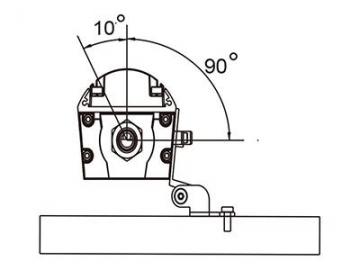

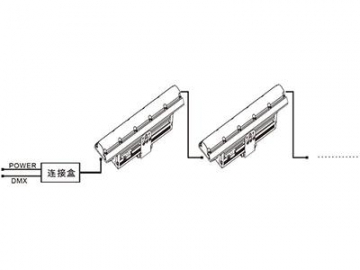

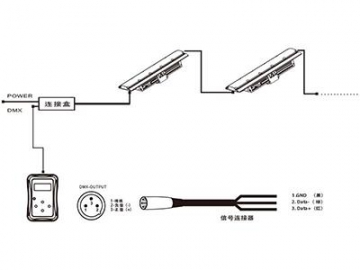

Installations
Optional Accessories
Anti-glare cover
