Architectural Lighting 24 LEDs Spot LED Light Code AM749XCT LED Lighting
Characteristics
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
- Equipped with advanced intelligent color management system CCS, can achieve perfect color effect.
- Lightning protection design and high performance stability.
- Combines the scientific secondary optical design to give full play to LED optics.
- Automatic addressing function and can automatically allocate address code.
Product Parameters
| Model | AM749XCT |
| Input Voltage | AC100~277V |
| Max. Power | 350W |
| Power Factor | >0.9 |
| Lumen | 7496lm |
| Peak Beam Intensity | 1003000cd(3.5°) |
| LED Quantity | 24pcs (6R+6G+6B+6W) |
| Optical Angle | 3.5°, 10°, 20° |
| DMX Dimming | 0-100% |
| RTCP | DMX512, RDM |
| Controllable Sections | 1 |
| Power Connection | 3m cable input |
| Data Connection | 3m cable input / output |
| IP Rating | IP66 |
| Operation Temperature | -40°C~45°C (operation) |
| -40°C~45°C (startup) | |
| Housing Material | Die-casting aluminum |
| Housing Color | White(optional: grey, black) |
| Dimensions | 423X284X443mm |
| Weight | 17.5KG |

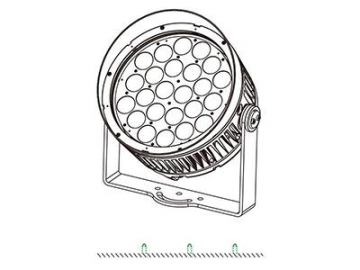

Dimensions
Illumination Contours

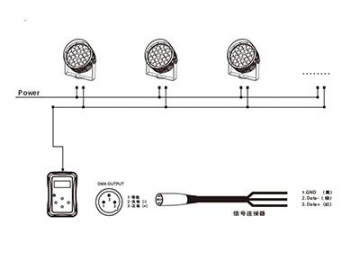

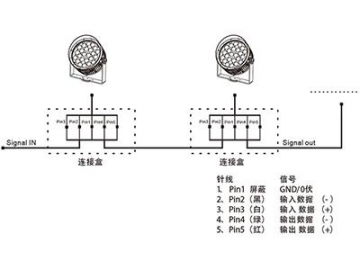

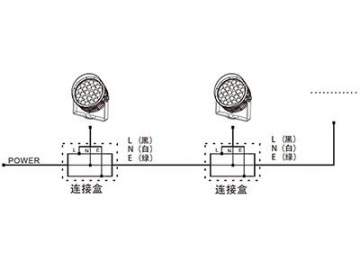

Installations
Optional Accessories
Anti-glare cover
