Architectural Lighting Linear LED Flood Light Code AM711SWT-SCT-CAT LED Lighting
Characteristics
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
- Automatic addressing function and can automatically allocate address code.
- Seamless joint, no side leakage.
Product Parameters
| Model | AM711SCT | AM711SWT | AM711CAT |
| Input Voltage | AC100~277V | AC100~277V | AC100~277V |
| Max. Power | 20W | 20W | 20W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 1514lm | 1435lm | 1750lm |
| Peak Beam Intensity | 15101cd(15°) | 14345cd(15°) | 15500cd(15°) |
| LED Quantity | 12pcs cool white | 12pcs warm white | 12pcs amber + cool white |
| Optical Angle | 15°(10°, 25°, 30°, 60°, 15°*30°, 10*60°) | 15°(10°, 25°, 30°, 60°, 15°*30°, 10*60°) | 15°(10°, 25°, 30°, 60°, 15°*30°, 10*60°) |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | intergrated power and signal cable | ||
| Data Connection | |||
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 305x62x84mm | 305x62x84mm | 305x62x84mm |
| Weight | 1.2KG | 1.2KG | 1.2KG |
Dimensions
Illumination Contours

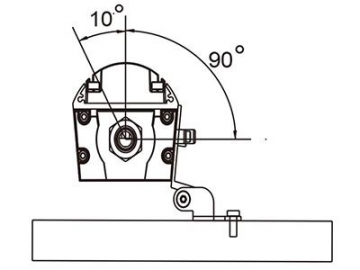

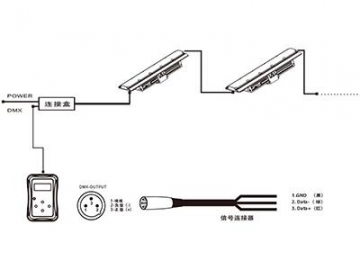

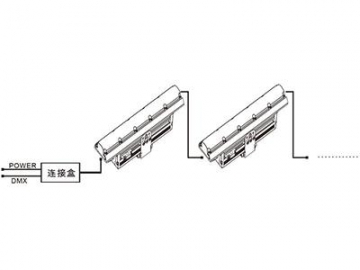

Installations
Optional Accessories
Anti-glare cover
