Architectural Lighting 60W Linear LED Floodlight Code AM714SWT-SCT-CAT LED Lighting
Characteristics
- Automatic addressing function and can automatically allocate address code.
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
Product Parameters
| Model | AM714SCT | AM714SWT | AM714CAT |
| Input Voltage | AC100~277V | AC100~277V | AC100~277V |
| Max. Power | 80W | 80W | 80W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 4639lm | 4408lm | 7031lm |
| Peak Beam Intensity | 54560cd(15°) | 51832cd(15°) | 62000cd(15°) |
| LED Quantity | 48pcs cool white | 48pcs warm white | 48pcs Amber + cool white |
| Optical Angle | 15°(10°, 25°, 30°, 60°, 15°*30°, 10*60°) | 15°(10°, 25°, 30°, 60°, 15°*30°, 10*60°) | 15°(10°, 25°, 30°, 60°, 15°*30°, 10*60°) |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | Integrated power and signal cable | ||
| Data Connection | |||
| IP Rating | IP67 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operating) | -40°C~45°C (operating) | -40°C~45°C (operating) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Extruded aluminum | Extruded aluminum | Extruded aluminum |
| Housing Color | Silver | Silver | Silver |
| Dimensions | 1220x62x84mm | 1220x62x84mm | 1220x62x84mm |
| Weight | 4.8KG | 4.8KG | 4.8KG |

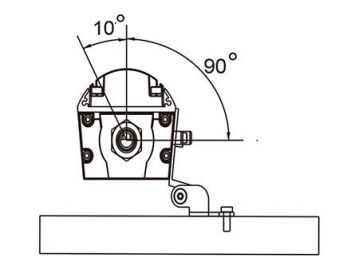

Dimensions
Illumination Contours

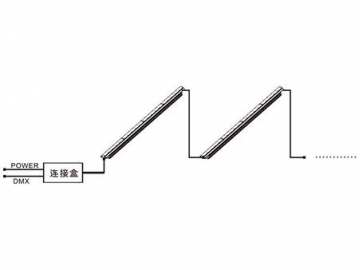

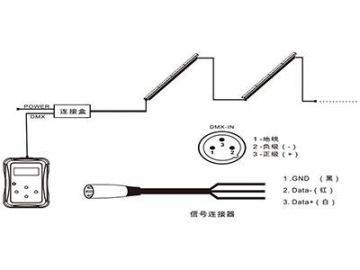

Installations
Optional Accessories
Anti-glare cover
