Architectural Lighting 36 LEDs Flood LED Light Bar Code AM713SWT-SCT-CAT LED Lighting
Characteristics
- Automatic addressing function and can automatically allocate address code.
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
Product Parameters
| Model | AM713SCT | AM713SWT | AM713CAT |
| Input Voltage | AC100~277V | AC100~277V | AC100~277V |
| Max. Power | 60W | 60W | 60W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 3974lm | 3775lm | 5200lm |
| Peak Beam Intensity | 445285cd(15°) | 42302cd(15°) | 46500cd(15°) |
| LED Quantity | 36pcs cool white | 36pcs warm white | 36pcs warm white + cool white |
| Optical Angle | 15°(10°, 25°, 30°, 60°, 15°*30°, 10*60°) | 15°(10°, 25°, 30°,60°, 15°*30°, 10*60°) | 15°(10°, 25°, 30°, 60°, 15°*30°, 10*60°) |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | Integrated power and signal cable | ||
| Data Connection | |||
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operating) | -40°C~45°C (operating) | -40°C~45°C (operating) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | extruded aluminum | extruded aluminum | extruded aluminum |
| Housing Color | silver | silver | silver |
| Dimensions | 915x62x84mm | 915x62x84mm | 915x62x84mm |
| Weight | 3.6KG | 3.6KG | 3.6KG |

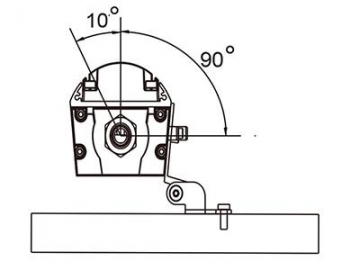

Dimensions
Illumination Contours

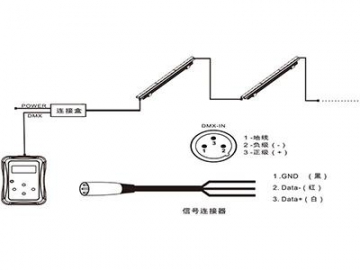

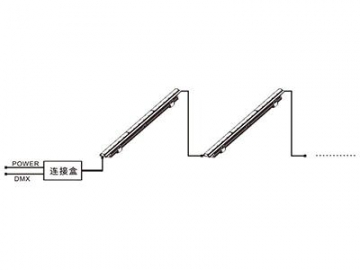

Installations
Optional Accessories
Anti-glare cover
