Architectural Lighting In-Ground LED Light Bar Code AP761ET-XCET LED Lighting
Characteristics
- IP67 waterproof IP rating, suitable for outdoor use.
- Integrated design, built-in power and drive, easy to install.
- Small in size and can be used as underground LED light or embedded LED light.
Product Parameters
| Model | AP761XCET | AP761ET |
| Input Voltage | AC100~240V | AC100~240V |
| Max. Power | 43W | 43W |
| Power Factor | >0.9 | >0.9 |
| Lumen | 1500lm | 1200lm |
| Peak Beam Intensity | 14000cd(16°) | 7328cd(16°) |
| LED Quantity | 12pcs RGBW | 12pcs RGB |
| Optical Angle | 16° | 16° |
| DMX Dimming | 0-100% | 0-100% |
| RTCP | DMX512 | DMX512 |
| Controllable Sections | 2 | 2 |
| Power Connection | 3m cable(operation) | 3m cable(operation) |
| Data Connection | 3m cable(startup) | 3m cable(startup) |
| IP Rating | IP67 | IP67 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Extruded aluminum | Extruded aluminum |
| Housing Color | Silver | Silver |
| Dimensions | 660X128X96mm | 660X128X96mm |
| Weight | 3.5KG | 3.5KG |

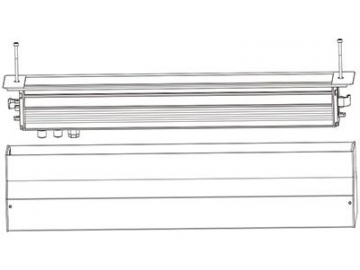

Dimensions
Illumination Contours

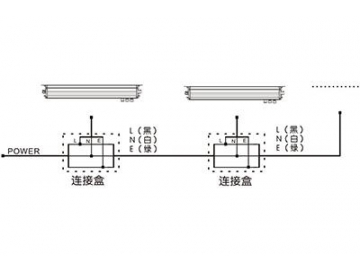

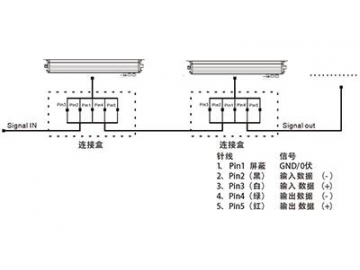

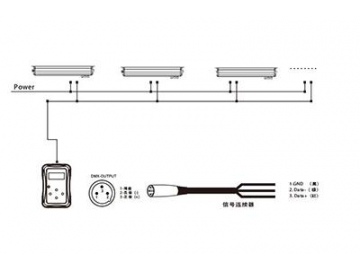

Installations
Optional Accessories
Dust cover
