Outdoor Lighting 12 LEDs Underground LED Light Code AP786SWT-SCT LED Lighting

Outdoor Lighting 12 LEDs Underground LED Light  Code AP786SWT-SCT LED Lighting
Outdoor Lighting 12 LEDs Underground LED Light  Code AP786SWT-SCT LED Lighting
Outdoor Lighting 12 LEDs Underground LED Light  Code AP786SWT-SCT LED Lighting
Outdoor Lighting 12 LEDs Underground LED Light  Code AP786SWT-SCT LED Lighting
Outdoor Lighting 12 LEDs Underground LED Light  Code AP786SWT-SCT LED Lighting
Outdoor Lighting 12 LEDs Underground LED Light  Code AP786SWT-SCT LED Lighting
Outdoor Lighting 12 LEDs Underground LED Light  Code AP786SWT-SCT LED Lighting
Characteristics
  • Super static load 3000KGS, up to IP67, IK10 grade, suitable for various outdoor weather conditions.
  • Small in size and can be used as underground LED light or embedded LED light.
  • Integrated design, built-in power and drive, easy to install.
Product Parameters
Model AP786SCT AP786SWT
Input Voltage AC100~240V AC100~240V
Max. Power 28W 28W
Power Factor >0.6 >0.6
Lumen 1553lm 1300lm
Peak Beam Intensity 11903cd(16°) 8231cd(16°)
LED Quantity 12pcs cool white 12pcs warm white
Optical Angle 16° 16°
DMX Dimming 0-100% 0-100%
RTCP DMX512 DMX512
Controllable Sections 1 1
Power Connection 3m cable input 3m cable input
Data Connection 3m cable input / output 3m cable input / output
IP Rating IP67, IK10 IP67, IK10
Operation Temperature -40°C~45°C (operation) -40°C~45°C (operation)
-20°C~45°C (startup) -20°C~45°C (startup)
Housing Material Die-casting aluminum Die-casting aluminum
Housing Color Black Black
Dimensions Ø320*146mm Ø320*146mm
Weight 8KG 8KG
Dimensions
Illumination Contours

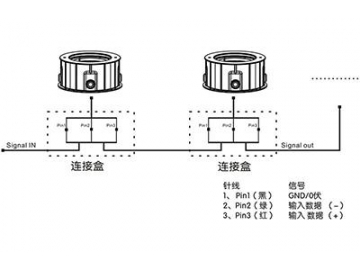

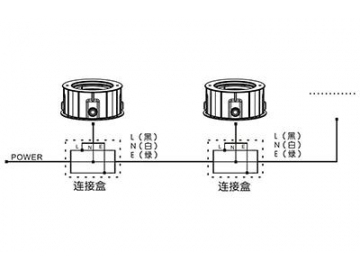

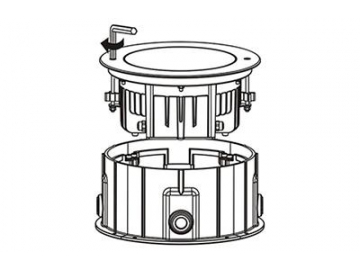

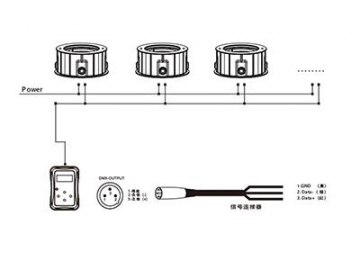

Installations

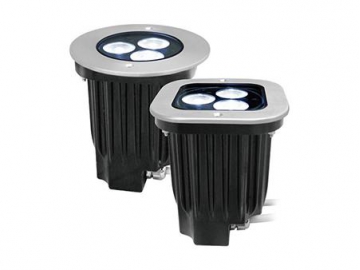

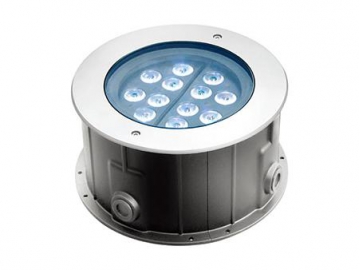

Related products
