Architectural Lighting 36W Wall Washer LED Light Code AW-L36SWT2-DK-GK LED Lighting
Characteristics
- Lamps and lanterns is small and light, a variety of brackets and optical fittings available.
- Different power, high and low voltage optional.
- IP67 waterproof IP rating, suitable for outdoor use.
Product Parameters
Model | AW-L36SWT-GK | AW-L36SWT-GK |
Input Voltage | AC100~240V | AC100~240V |
Max. Power | 36W | 36W |
Power Factor | >0.9 | >0.9 |
Lumen | 2263.56lm | 2263.56lm |
Peak Beam Intensity | 8075cd(30°) | 8075cd(30°) |
LED Quantity | 24pcs warm white | 24pcs warm white |
Optical Angle | 30°(15°, 20°, 45°, 60°, 20*45°, 10*60°) | 30°(15°, 20°, 45°, 60°, 20*45°, 10*60°) |
DMX Dimming | 0-100% | 0-100% |
RTCP | DMX512, RDM | DMX512, RDM |
Controllable Sections | 4 | 4 |
Power Connection | Integrated power and signal cable | |
Data Connection | ||
IP Rating | IP67 | IP67 |
Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) |
-20°C~45°C (startup) | -20°C~45°C (startup) | |
Housing Material | extruded aluminum | extruded aluminum |
Housing Color | silver | silver |
Dimensions | 968X50X87.4mm | 960X48.5X87mm |
Weight | 2.1KG | 2.1KG |
Dimensions
Illumination Contours

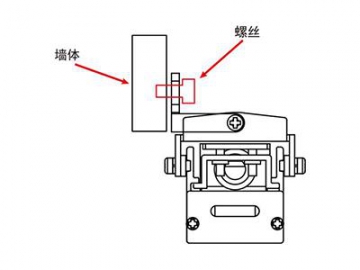

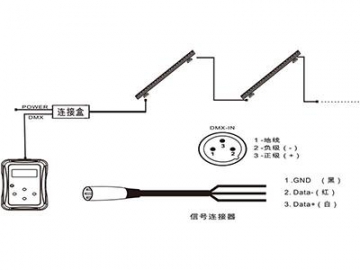

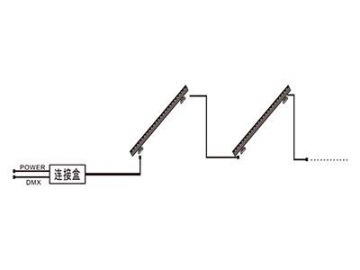

Installations
