Architectural Lighting LED In-ground Light Bar Code AP761SCT-SWT LED Lighting
Characteristics
- IP67 waterproof IP rating, suitable for outdoor use.
- Integrated design, built-in power and drive, easy to install.
- Small in size and can be used as underground LED light or embedded LED light.
Product Parameters
| Model | AP761SCT | AP761SWT |
| Input Voltage | AC100~240V | AC100~240V |
| Max. Power | 30W | 30W |
| Power Factor | >0.6 | >0.6 |
| Lumen | 1600lm | 1512lm |
| Peak Beam Intensity | 8966cd(16°) | 6276cd(16°) |
| LED Quantity | 12pcs cool white | 12pcs warm white |
| Optical Angle | 16° | 16° |
| DMX Dimming | 0-100% | 0-100% |
| RTCP | DMX512 | DMX512 |
| Controllable Sections | 1 | 1 |
| Power Connection | 3m cable(input only) | 3m cable(input only) |
| Data Connection | 3m cable(input +output) | 3m cable(input +output) |
| IP Rating | IP67 | IP67 |
| Operation Temperature | -40°C~45°C (operating) | -40°C~45°C (operating) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Extruded aluminum | Extruded aluminum |
| Housing Color | Silver | Silver |
| Dimensions | 660X128X96mm | 660X128X96mm |
| Weight | 3.5 KG | 3.5 KG |

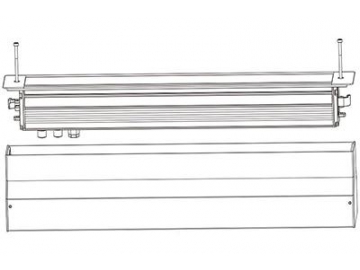

Dimensions
Illumination Contours

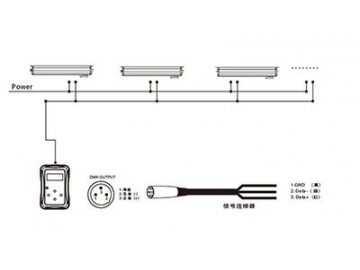

Installations
Optional Accessories
Dust cover
