Outdoor Lighting 3 LEDs Warm and Cool White LED Light Code AP785SWT-SCT LED Lighting
Characteristics
- Super static load 3000KGS, up to IP67, IK10 grade, suitable for various outdoor weather conditions.
- Small in size and can be used as underground LED light or embedded LED light.
- Integrated design, built-in power and drive, easy to install.
Product Parameters
| Model | AP785SCT | AP785SWT |
| Input Voltage | AC100~240V | AC100~240V |
| Max. Power | 12W | 12W |
| Power Factor | >0.6 | >0.6 |
| Lumen | 595lm | 550lm |
| Peak Beam Intensity | 3628cd(16°) | 2916cd(16°) |
| LED Quantity | 3pcs cool white | 3pcs warm white |
| Optical Angle | 16° | 16° |
| DMX Dimming | 0-100% | 0-100% |
| RTCP | DMX512 | DMX512 |
| Controllable Sections | 1 | 1 |
| Power Connection | 3m cable(operation) | 3m cable(operation) |
| Data Connection | 3m cable(startup) | 3m cable(startup) |
| IP Rating | IP67, IK10 | IP67, IK10 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum |
| Housing Color | Black | Black |
| Dimensions | Ø153*175.2mm(round) | Ø153*175.2mm(round) |
| 133*175.2mm(square) | 133*175.2mm(square) | |
| Weight | 2KG | 2KG |
Dimensions
Illumination Contours

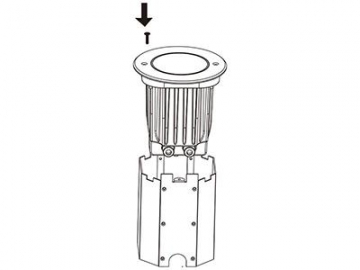

Installations
