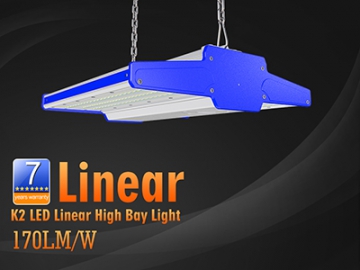

K2 High Lumen Linear LED High Bay
High quality aviation aluminum heatsink, and a nodic oxidation treatment, giving high output and long term reliable performance. Together with high efficiency mid-power LED light source and high performance driver, this product values each dollar investment in the industrial lighting areas.
Adopted advanced constant current controlling techniques;
Wide voltage range and high voltage 347V 480V available, global universal;
Overcome the lighting instability caused by electric network of ballast and noise pollution;
Avoid the stimulation and tiredness taking from long-time working.
Led Chip:
170lm/w for whole lamp
3000-6500K available
Power supply :

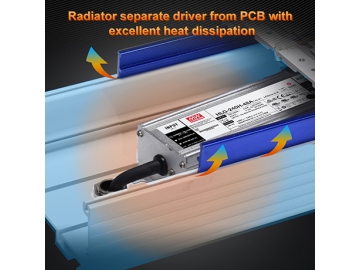

Meanwell driver
Input voltage: AC90-305V/AC180-528V
Power factor: 0.95PF 0-10V, Dali, PMW signal, Timing Dimmable functions
| Power | Input Voltage | LED Quantity | Lumens | Dimension | |
| 100W | AC90-305V | 154PCS | 17000lm | 300*320*80mm | |
| 150W | AC90-305V | 154PCS | 25500lm | 300*320*80mm | |
| 200W | AC90-305V | 308PCS | 34000lm | 600*320*80mm | |
| 250W | AC90-305V | 308PCS | 42500lm | 600*320*80mm | |
| 300W | AC90-305V | 462PCS | 51000lm | 895*320*80mm | |
| 360W | AC90-305V | 462PCS | 61200lm | 895*320*80mm | |
| 400W | AC90-305V | 616PCS | 68000lm | 1190*320*80mm | |
| 500W | AC90-305V | 616PCS | 85000lm | 1190*320*80mm |
| CRI: | >70Ra |
| Power Factor: | >0.95PF |
| Lumen Maintanace : | 90% |
| Output Voltage Range: | DC42-48V |
| Frequency : | 50-60HZ |
| Operating Temperature: | -40 ℃ to 55℃ |

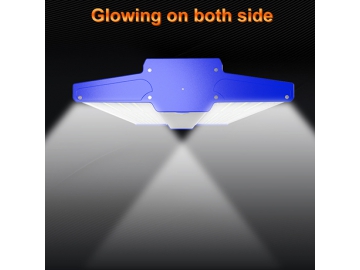

| Beam Angle: | 60°/ 90°/ 120° |

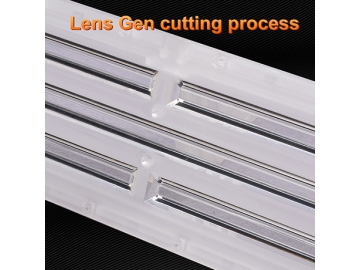

| Lens Material: | Clear/ Frosted PC |
| Housing Material: | Aluminum |

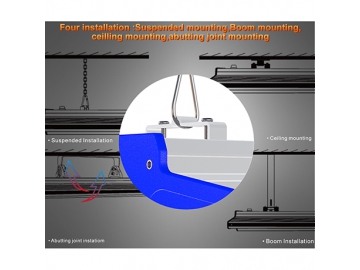

| Mounting: | Pipe, Ceiling, Suspend mounts |
Qualifications *DLC Premium, UL/cUL,LM-79,ISTMT compliant, CB, SAA, IK10
Material Usage: UL CB SAA Compliant; no mercury
Environment: Indoor, Outdoor, Dry/Wet Location
IP Rating: IP65

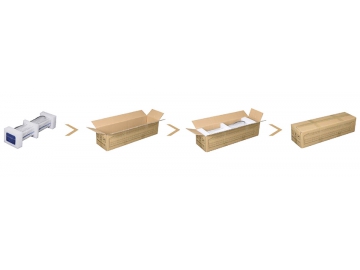

1. Each into one Carton Box
2. Carton material : K&K Materical Carton
| Model No. | Carton Size(CM) | G.W (KG) | Loading OTY(PCS) | ||
| 20'GP | 40'GP | 40'HQ | |||
| MF-HB50W-K1 | 42*21*18 | 2.88 | 1450 | 3200 | 3800 |
| MF-HB100W-K1 | 70*21*18 | 5.41 | 880 | 1900 | 2300 |
| MF-HB150W-K1 | 100*21*18 | 6.78 | 610 | 1350 | 1610 |
| MF-HB200W-K1 | 130*21*18 | 8.46 | 470 | 1050 | 1240 |
| MF-HB250W-K1 | |||||
