1EL Metric Male O-Ring Seal / Bonded Seal Hose Adapter
Application: for use with hydraulic braided hoses
Materials:- Stainless steel metric male O-ring seal / bonded seal hose adapter
- Carbon steel metric male O-ring seal / bonded seal hose adapter

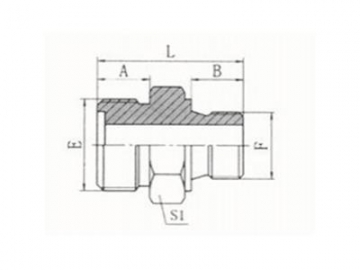

| Part No. | Thread | O-ring | Dimensions | |||||
| E | F | A | B | L | S1 | |||
| 1EL-16-14 | M16×1.5 | M14×1.5 | 11×1.9 | 11 | 12 | 30 | 19 | |
| 1EL-22-18 | M22×1.5 | M18×1.5 | 16×2.4 | 12 | 12 | 32 | 24 | |
| 1EL-27-22 | M27×1.5 | M22×1.5 | 18×2.4 | 13 | 14 | 36 | 30 | |
| 1EL-30-27 | M30×1.5 | M27×2 | 24×2.4 | 14 | 16 | 40 | 36 | |
| 1EL-36-33 | M36×2 | M33×2 | 30×3.1 | 16 | 18 | 45 | 41 | |
| 1EL-45-42 | M45×2 | M42×2 | 38×3.1 | 20 | 20 | 55 | 55 | |
| 1EL-52-48 | M52×2 | M48×2 | 40×3.1 | 22 | 22 | 61 | 60 | |
