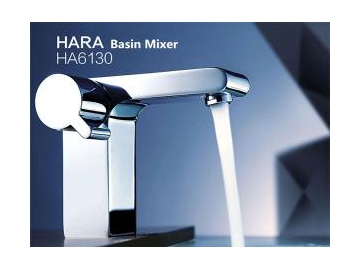

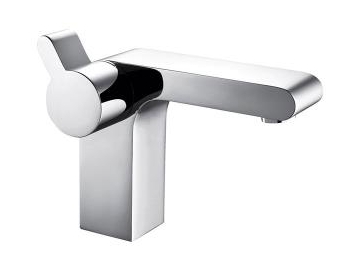

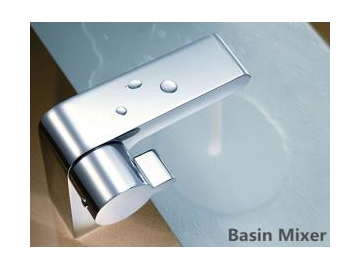

Product name: Exposed basin mixer, single-lever, single-function, short type
Series: Aurora series
Valve cartridge: Φ35 ceramic type
Material: Refined brass, low-lead environmental type

By applying a useful cartridge, the lever can rotate at an angle of 180°. When rotated inward, the spout pours cold water and hot water. The water temperature can be regulated at the same time.

Custom-made service is accessible.

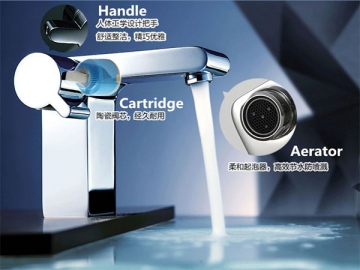

  • The ergonomically-designed lever is easy to operate and has a delicate appearance.

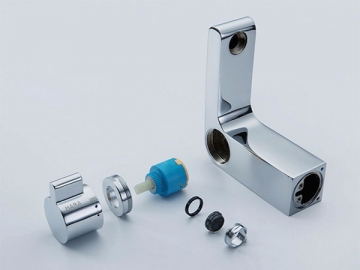

  • Main configurations
Product details

Low-Lead Brass
The carefully-selected brass has a low lead content, far lower than the national standard, providing you and your family a safe shower environment. After being gravity cast, the main body possesses precise dimensions and no leakage.

High-Quality Cartridge
Passing 600,000 times of lifespan test, the cartridge shows a number of advantages, including but not limited to, water saving, silent operation, anti-abrasion, deformation resistance, high-temperature resistance, low-temperature resistance, excellent sealing capacity and high durability.

Modern Electroplating Technology
Backed by multiple-layer thickened treatment, the bathroom basin mixer tap has a smooth and anti-corrosion surface. It has successfully passed the 72-hour acid salt spray test since it has a 15µm thick nickel layer and over 0.3µm thick chromium layer, which is higher than the national standard.

Imported Aerator
The newly-developed honeycomb type water aerator achieves an air bubble and water ratio of 1:3, allowing for sufficient mixture and stable water flow. Such a functional aerator brings lots of advantages, such as low noise, environmental protection, water saving, anti-clog and smooth water flow. More importantly, the aerator overcomes the problem of water splashing in all directions.

Accurate Control
Developed with an ultra-wide rotation angle, the lever is effortless and easy to operate, providing accurate and convenient control for water temperature and flow.

Tough Hose
Integrating the properties of EPDM and stainless steel, the woven hose is able bear 20 kg of water pressure, which is tough and durable. Equipped with stainless steel screws, the bathroom basin mixer tap is easy to install and highly firm.

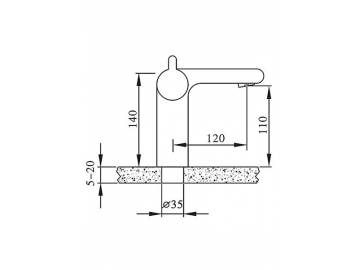

  • Dimension drawing

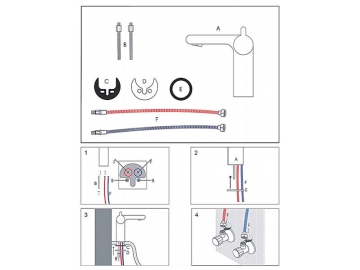

  • Installation instruction
